Features:

• Advanced ICS monolithic phase-locked loop technology for extremely low jitter
• Supports high-resolution graphics - VCLK output to 145 MHz
• Completely integrated - requires only external crystal (or reference frequency and decoupling)
• Power-down modes support portable computing
• Sixteen selectable VCLK frequencies (all user re-programmable)
• Four selectable MCLK frequencies (all user re-programmable)


Application

• PC Graphics
• VGA/Supper VGA/XGA Applications


Pinout

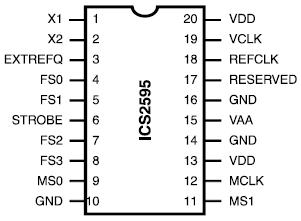

Connection Diagram


Specifications

Supply Voltage ........................................ -5V to +7 V
Logic inputs....................................... 5V to VDD +.5V
Ambient operating temp .......................... 0 to 70
Storage temperature ....................... -85 to +150
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress specifications only and functional operation of the device at these or any other conditions above those listed in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.


Description

The ICS2595 is a dual-PLL (phase-locked loop) clock generator specifically designed for high-resolution, highrefresh rate, video applications. The video PLL generates any of 16 pre-programmed frequencies through selection of the address lines FS0-FS3. Similarly, the auxiliary PLL can generate any one of four pre-programmed frequencies via the MS0 & MS1 lines.

A unique feature of the ICS2595 is the ability to redefine frequency selections in both the VCLK and MCLK synthesizers after power-up. This permits complete set-up of the frequency table upon system initialization
