ICS2572

Features: · Advanced ICS monolithic phase-locked loop technology· Supports high-resolution graphics - differential CLK output to 185 MHz· Divided dotclock output (LOAD) available· Simplified device programming· Sixteen selectable VCLK frequencies (all user re-programmable)· Four selectable MCLK fr...

product image

ICS2572 Picture
See larger image
SeekIC No. : 004370743 Detail

ICS2572: Features: · Advanced ICS monolithic phase-locked loop technology· Supports high-resolution graphics - differential CLK output to 185 MHz· Divided dotclock output (LOAD) available· Simplified device ...

ICS2572 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICS2572
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/1/2

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Advanced ICS monolithic phase-locked loop technology
· Supports high-resolution graphics - differential CLK output to 185 MHz
· Divided dotclock output (LOAD) available
· Simplified device programming
· Sixteen selectable VCLK frequencies (all user re-programmable)
· Four selectable MCLK frequencies (all user re-programmable)
· Windows NT compatible


Application

· High end PC/low end workstation graphics designs requiring differential output
· X Terminal graphics


Pinout

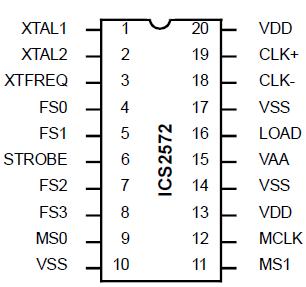

Connection Diagram


Specifications

Supply voltage . . . . . . . . . . .. . . . . . . . . . . . -.5V to +7V
Logic inputs . . . . . . . . . . . . . . . . . . . . .-.5V to VDD +.5V
Ambient operating temp . . . . . . . . . . . . . . . . . 0 to 70
Storage temperature . . . . . . . . . . . . . . . -85 to + 150
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.


Description

The ICS2572 is a dual-PLL (phase-locked loop) clock generator with differential video outputs specifically designed for high-resolution, high-refresh rate, video applications. The video PLL generates any of 16 pre-programmed frequencies through selection of the address lines FS0-FS3. Similarly, the auxiliary PLL can generate any one of four pre-programmed frequencies via the MS0 & MS1 lines.

A unique feature of the ICS2572 is the ability to redefine frequency selections after power-up. This permits complete set-up of the frequency table upon system initialization
