ICL8211

Features:

• High Accuracy Voltage Sensing and Generation
• Internal Reference 1.15V Typical
• Low Sensitivity to Supply Voltage and Temperature Variations
• Wide Supply Voltage Range Typ. 1.8V to 30V
• Essentially Constant Supply Current Over Full Supply Voltage Range
• Easy to Set Hysteresis Voltage Range
• Defined Output Current Limit ICL8211
• High Output Current Capability ICL8212


Application

• Low Voltage Sensor/Indicator
• High Voltage Sensor/Indicator
• Nonvolatile Out-of-Voltage Range Sensor/Indicator
• Programmable Voltage Reference or Zener Diode
• Series or Shunt Power Supply Regulator
• Fixed Value Constant Current Source

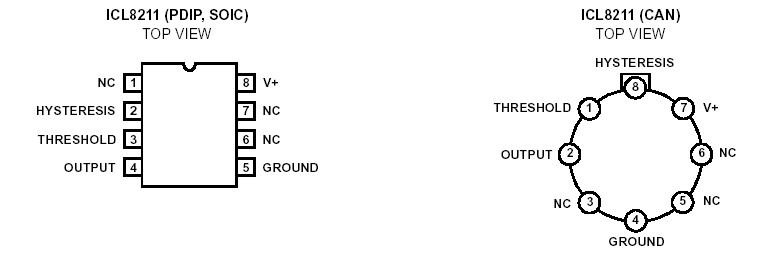

Pinout




Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to +30V
Output Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -0.5V to +30V
Hysteresis Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . +0.5V to -10V
Threshold Input Voltage . . . . . . . . . . . . . +30V to -5V with respect to
                                      GROUND and +0V to -30V with respect to V+
Current into Any Terminal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ± 30mA


Description

The Intersil ICL8211 are micropower bipolar monolithic integrated circuits intended primarily for precise voltage detection and generation. These circuits consist of an accurate voltage reference, a comparator and a pair of output buffer/drivers.

Specifically, the ICL8211 provides a 7mA current limited output sink when the voltage applied to the 'THRESHOLD' terminal is less than 1.15V (the internal reference). The ICL8211 requires a voltage in excess of 1.15V to switch its output on (no current limit). Both devices have a low current output (HYSTERESIS) which is switched on for input voltages in excess of 1.15V. The HYSTERESIS output may be used to provide positive and noise free output switching using a simple feedback network.
