ICL7667

Features:

Fast Rise and Fall Times
-30ns with 1000pF Load
Wide Supply Voltage Range
-V_CC= 4.5V to 15V
Low Power Consumption
-4mW with Inputs Low
-20mW with Inputs High
TTL/CMOS Input Compatible Power Driver
-R_OUT= 7ΩTyp
Direct Interface with Common PWM Control ICs
Pin Equivalent to DS0026/DS0056; TSC426




Application

•Switching Power Supplies

•DC/DC Converters

•Motor Controllers

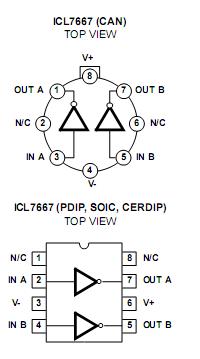

Pinout






Specifications

Supply Voltage V+ to V-. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15V

Input Voltage . . . . . . . . . . . . . . . . . . . . . . . . . .V- -0.3V to V+ +0.3V

Package Dissipation, T_A25°C. . . . . . . . . . . . . . . . . . . . . . . .500mW





Description

The ICL7667 is a dual monolithic high-speed driver designed to convert TTL level signals into high current outputs at voltages up to 15V. Its high speed and current output enable it to drive large capacitive loads with high slew rates and low propagation delays. With an output voltage swing only millivolts less than the supply voltage and a maximum supply voltage of 15V, the ICL7667 is well suited for driving power MOSFETs in high frequency switchedmode power converters. The ICL7667s high current outputs minimize power losses in the power MOSFETs by rapidly charging and discharging the gate capacitance. The ICL7667s inputs are TTL compatible and can be directly driven by common pulse-width modulation control ICs.
