ICL3226ECA-T

IC 1DRVR/1RCVR RS232 3V 16-SSOP

product image

ICL3226ECA-T Picture
See larger image
SeekIC No. : 003522692 Detail

ICL3226ECA-T: IC 1DRVR/1RCVR RS232 3V 16-SSOP

ICL3226ECA-T Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICL3226ECA-T
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: Intersil
Type: Transceiver Number of Drivers/Receivers: 1/1
Protocol: RS232 Power Dissipation : 1668 mW
Voltage - Supply: 3 V ~ 5.5 V Mounting Type: Surface Mount
Package / Case: 16-SSOP (0.209", 5.30mm Width) Supplier Device Package: 16-SSOP

Description

Series: -
Mounting Type: Surface Mount
Packaging: Tape & Reel (TR)Alternate Packaging
Type: Transceiver
Number of Drivers/Receivers: 1/1
Protocol: RS232
Package / Case: 16-SSOP (0.209", 5.30mm Width)
Supplier Device Package: 16-SSOP
Voltage - Supply: 3 V ~ 5.5 V
Manufacturer: Intersil


Features:

• Pb-free Available as an Option (see Ordering Information)
• ESD Protection for RS-232 I/O Pins to ±15kV (IEC61000)
• Manual and Enhanced Automatic Powerdown Features
• Drop in Replacements for MAX3224E, MAX3226E, MAX3244E
• Meets EIA/TIA-232 and V.28/V.24 Specifications at 3V
• RS-232 Compatible with VCC = 2.7V
• Latch-Up Free
• On-Chip Voltage Converters Require Only Four External 0.1µF Capacitors
• Guaranteed Mouse Driveability (ICL3244E)
• "Ready to Transmit" Indicator Output (ICL3224E/26E)
• Receiver Hysteresis For Improved Noise Immunity
• Guaranteed Minimum Data Rate. . . . . . . . . . . . . 250kbps
• Guaranteed Minimum Slew Rate. . . . . . . . . . . . . . . 6V/µs
• Wide Power Supply Range . . . . . . .  Single +3V to +5.5V
• Low Supply Current in Powerdown State. . . . . . . . . . .1µA



Application

• Any System Requiring RS-232 Communication Ports
  -Battery Powered, Hand-Held, and Portable Equipment
  -Laptop Computers, Notebooks, Palmtops
  -Modems, Printers and other Peripherals
  -Digital Cameras
  -Cellular/Mobile Phones


Pinout

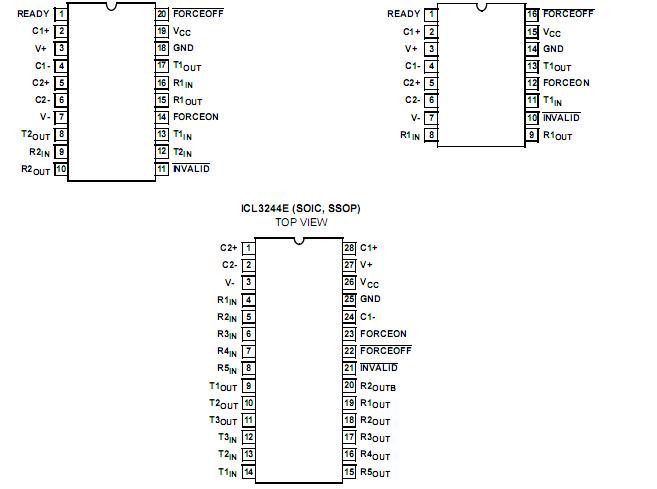

Connection Diagram


Specifications

VCC to Ground. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  -0.3V to 6V
V+ to Ground. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. .  -0.3V to 7V
V- to Ground . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  . .  +0.3V to -7V
V+ to V- . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  14V
Input Voltages
   TIN, FORCEOFF, FORCEON . . . . . . . . . . . . . . . . . . ...... -0.3V to 6V
   RIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . .  ±25V
Output Voltages
   TOUT. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±13.2V
   ROUT, INVALID, READY . . . . . . . . . . .. .. . . . . . -0.3V to VCC +0.3V
Short Circuit Duration
  TOUT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  Continuous
  ESD Rating . . . . . . . . . . . . . . . . . . . . . . . . .See Specification Table
