ICE2A380P2

Primary & Secondary Side PWM Controllers Off-Line SMPS Currnt Mode CTRLR 650V

product image

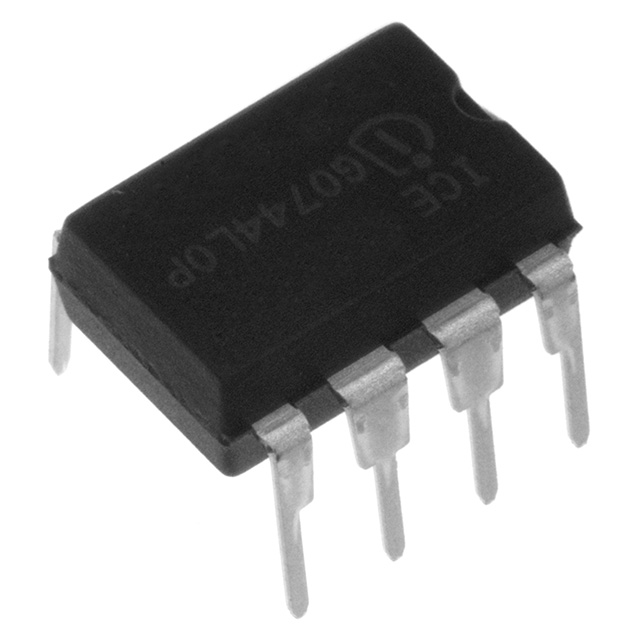

ICE2A380P2 Picture
See larger image
SeekIC No. : 00541550 Detail

ICE2A380P2: Primary & Secondary Side PWM Controllers Off-Line SMPS Currnt Mode CTRLR 650V

ICE2A380P2 Data Sheet

floor Price/Ceiling Price

US $ 1.33~1.95 / Piece | Get Latest Price
Part Number:
ICE2A380P2
Mfg:
Infineon Technologies
Supply Ability:
5000

Price Break

  • Qty
  • 0~245
  • 245~250
  • 250~500
  • 500~1000
  • Unit Price
  • $1.95
  • $1.76
  • $1.58
  • $1.33
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Packaging : Tube

Description

Number of Outputs :
Switching Frequency :
Operating Supply Voltage :
Maximum Operating Temperature :
Minimum Operating Temperature :
Package / Case :
Packaging : Tube


Features:

• 800V avalanche rugged CoolMOS™
• Only few external components required
• Input Vcc Undervoltage Lockout
• 100kHz switching frequency
• Max duty cycle 72%
• Low Power Standby Mode to meet European Commission Requirements
• Thermal Shut Down with Auto Restart
• Overload and Open Loop Protection
• Overvoltage Protection during Auto Restart
• Adjustable Peak Current Limitation via external resistor
• Overall tolerance of Current Limiting < ±5%
• Internal Leading Edge Blanking
• User defined Soft Start Soft Switching for low EMI


Specifications

Parameter Symbol min.    max. Unit Remarks
Drain Source Voltage VDS            800 V Tj = 25
Avalanche energy,
repetitive tAR limited by max. Tj=1501)		 EAR           0.05 mJ
Avalanche current,
repetitive tAR limited by max. Tj=150		 IAR               3 A
VCC Supply Voltage VCC -0.3      22 V
FB Voltage VFB -0.3     6.5 V
SoftS Voltage VSoftS -0.3     6.5 V
ISense ISense -0.3       3 V
Junction Temperature Tj -40     150 Controller & CoolMOS™
Storage Temperature TS -50      150
Thermal Resistance
Junction-Ambient		 RthJA1              74 K/W Free standing with no
heat-sink
Junction-Case RthJC             2.5 K/W
ESD Robustness2) VESD               2 kV Human Body Model
1) Repetitive avalanche causes additional power losses that can be calculated as PAV=EAR* f
2) Equivalent to discharging a 100pF capacitor through a 1.5 k series resistor


Description

The second generation CoolSET™-F2 of the ICE2A380P2 provides several special enhancements to satisfy the needs for low power standby and protection features. In standby mode frequency reduction is used to lower the power consumption and support a stable output voltage in this mode. The frequency reduction of the ICE2A380P2 is limited to 21.5 kHz to avoid audible noise. In case of failure modes like open loop, overvoltage or overload due to short circuit the device switches in Auto Restart Mode which is controlled by the internal protection unit. By means of the internal precise peak current limitation, the dimension of the transformer and the secondary diode can be sized lower which leads to more cost effective for the overall system.




Parameters:

Technical/Catalog InformationICE2A380P2
VendorInfineon Technologies
CategoryIntegrated Circuits (ICs)
PackagingTube
Package / CaseTO-220-6
Power (Watts)111W
Voltage - Input8.5 ~ 22 V
Voltage - Output800V
Frequency Range93 ~ 107kHz
Operating Temperature-40°C ~ 150°C
Output IsolationIsolated
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names ICE2A380P2
ICE2A380P2
