ICE1PD265G

Features: IC for sinusoidal line-current consumptionController and CoolMOS within one packageP-DSO-16-10Power factor achieves nearly 1Controls boost converter as active harmonic filter for low THDStart up with very low current consumptionZero current detector for discontinuous operation modeOutput...

product image

ICE1PD265G Picture
See larger image
SeekIC No. : 004370474 Detail

ICE1PD265G: Features: IC for sinusoidal line-current consumptionController and CoolMOS within one packageP-DSO-16-10Power factor achieves nearly 1Controls boost converter as active harmonic filter for low THDSt...

ICE1PD265G Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICE1PD265G
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

IC for sinusoidal line-current consumption
Controller and CoolMOS within one package
P-DSO-16-10
Power factor achieves nearly 1
Controls boost converter as active harmonic filter for low THD
Start up with very low current consumption
Zero current detector for discontinuous operation mode
Output overvoltage protection
Output undervoltage lockout
Internal start up timer
Totem pole output with active shut down
Internal leading edge blanking LEB
Very low comparator and multiplier offsets for universal input applications
High sophisticated amplifier minimizes distortion inteferences caused by MOSFET switching


Pinout

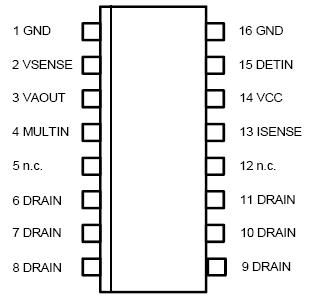

Connection Diagram


Specifications

Parameter
Symbol
Min
Max
Unit
Remark
Supply + Zener Current
Icc+Iz
-
20
mA
Supply Voltage
VCC
-0.3
Vz
V
Vz=Zener Voltage
Icc+Iz=20mA
Voltage at Pin 2,4,13
-0.3
6.5
V
Current into Pin 3
IVAOUT
-10
30
mA
mA
VAOUT=4V,VSENSE=2.8V
VAOUT=0V,VSENSE=2.3V
t<1ms
Current into Pin 15
IDETIN
-10
10
mA
mA
DETIN > 6V
DETIN< 0.4V
Voltage at Pin 6- 11
VDRAIN
650
TJ=115°C
Continuous Drain Current
ID
3.2
2
A
A
TC=25°C
TC=100°C
Avalanche Energy
EAr
0.2
mJ
repetitive
ESD Protection
2000
V
MIL STD 883C method
3015.6, 100pF,1500
Storage Temperature
Tstg
-50
150
°C
Operating Junction Temperature
TJ
-25
150
°C
Thermal Resistance
Junction-Ambient
RthJA
120
K/W
P-DSO-16-10



Description

The ICE1PD265G IC controls a boost converter in a way that sinusoidal current is taken from the single phase line supply and stabilized DC voltage is available at the output. CoolMOS and controller are placed together in one package.

This active harmonic filter of the ICE1PD265G limits the harmoniccurrents resulting from the capacitor pulsed charge currents during rectification. The power factor which descibes the ratio between active and apparent power is almost one. Line voltage fluctuations can be compensated very efficiently
