IC41LV4400x

Features: • Extended Data-Out (EDO) Page Mode access cycle• TTL compatible inputs and outputs• Refresh Interval:-- 2,048 cycles/32 ms-- 4,096 cycles/64 ms• Refresh Mode: RAS-Only,CAS-before-RAS (CBR), and Hidden• JEDEC standard pinout• Single power supply:5V ± 1...

product image

IC41LV4400x Picture
See larger image
SeekIC No. : 004370367 Detail

IC41LV4400x: Features: • Extended Data-Out (EDO) Page Mode access cycle• TTL compatible inputs and outputs• Refresh Interval:-- 2,048 cycles/32 ms-- 4,096 cycles/64 ms• Refresh Mode: RAS-...

IC41LV4400x Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IC41LV4400x
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Extended Data-Out (EDO) Page Mode access cycle
• TTL compatible inputs and outputs
• Refresh Interval:
-- 2,048 cycles/32 ms
-- 4,096 cycles/64 ms
• Refresh Mode: RAS-Only,CAS-before-RAS (CBR), and Hidden
• JEDEC standard pinout
• Single power supply:5V ± 10% or 3.3V ± 10%
• Byte Write and Byte Read operation via two CAS

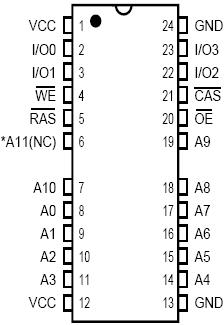

Pinout

Connection Diagram


Specifications

Symbol Parameters
Rating
Unit
VT Voltage on Any Pin Relative to GND
5V
3.3V
1.0 to +7.0
0.5 to +4.6
V
VCC Supply Voltage
5V
3.3V
1.0 to +7.0
0.5 to +4.6
V
IOUT Output Current
50
mA
PD Power Dissipation
1
W
TA Commercial Operation Temperature
0 to +70
−40 to +85
TSTG Storage Temperature
−55 to +125
Stress greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.


Description

The IC41LV4400x Series is a 4,194,304 x 4-bit high-performance CMOS Dynamic Random Access Memory. These devices
offer an accelerated cycle access called EDO Page Mode.EDO Page Mode allows 2,048 or 4096 random accesses within a single row with access cycle time as short as 20 ns per 4-bit word.

These features of the IC41LV4400x make the 4400 Series ideally suited for highbandwidth graphics, digital signal processing, high-performance computing systems, and peripheral applications.

The IC41LV4400x Series is packaged in a 24-pin 300mil SOJ and a 24 pin TSOP-2
