Product Details

Description



Features:

• Extended Data-Out (EDO) Page Mode access cycle
• TTL compatible inputs and outputs; tristate I/O
• Refresh Interval: 1024 cycles /16 ms
• Refresh Mode: RAS-Only, CAS-before-RAS (CBR),Hidden
• Single power supply:5V ± 10% (IC41C8512) 3.3V ± 10% (IC41LV8512)
• Industrail Temperature Range -40 to 85

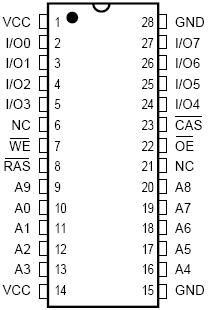

Pinout

Connection Diagram


Specifications

Symbol Parameters
Rating
Unit
VT Voltage on Any Pin Relative to GND 5V
3.3V
1.0 to +7.0
0.5 to +4.6
V
V
VCC Supply Voltage 5V
3.3V
1.0 to +7.0
0.5 to +4.6
V
V
IOUT Output Current
50
mA
PD Power DICSIpation
1
W
TA Commercial Operation Temperature
Industrial Operationg Temperature
0 to +70
-40 to +85

TSTG Storage Temperature
55 to +125
Stress greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.


Description

The ICSI IC41C8512 and IC41LV8512 is a 524,288 x 8-bit highperformance CMOS Dynamic Random Access Memories. The IC41C8512 offer an accelerated cycle access called EDO Page Mode. EDO Page Mode allows 1024 random accesses within a single row with access cycle time as short as 12 ns per 8-bit word.

These features make the IC41C8512and IC41LV8512 ideally suited for, digital signal processing, high-performance audio systems, and peripheral applications.

The IC41C8512 is packaged in a 28-pin 400mil SOJ and 400mil TSOP-2.
