Product Details

Description



Features:

• Extended Data-Out (EDO) Page Mode access cycle
• TTL compatible inputs and outputs
• Refresh Interval: -- 2,048 cycles/32 ms
• Refresh Mode: RAS-Only, CAS-before-RAS (CBR), and Hidden
• Self Refresh Mode 2,048 cycles/64ms
• JEDEC standard pinout
• Single power supply: 5V±10% or 3.3V ± 10%
• Byte Write and Byte Read operation via CAS


Pinout

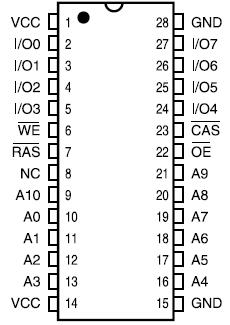

Connection Diagram


Specifications

Symbol
Parameter
Ratings
Unit
VT Voltage on Any Pin Relative to GND
5V
3.3V
1.0 to +7.0
0.5 to +4.6
V
VCC Supply Voltage
5V
3.3V
1.0 to +7.0
0.5 to +4.6
V
IOUT Output Current
50
mA
PD Power Dissipation
1
W
TA Commercial Operation Temperature
0 to +70
TSTG Storage Temperature
55 to +125

Note:
1. Stress greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.


Description

The IC41C82002S Series is a 2,097,152 x 8-bit high-performance CMOS Dynamic Random Access Memory. The EDO Page Mode allows 2,048 random accesses within a single row with access cycle time as short as 20 ns per 8-bit word.

These features make the IC41C82002S Series ideally suited for highbandwidth graphics, digital signal processing, high-performance computing systems, and peripheral applications.

The IC41C82002S Series is packaged in a 28-pin 300mil SOJ and a 28 pin 400mil TSOP-2 .
