Product Details

Description

Features:

• Fast Page Mode Access Cycle
• TTL compatible inputs and outputs
• Refresh Interval:
-- 2,048 cycles/32 ms
-- 4,096 cycles/64 ms
• Refresh Mode: RAS-Only,
CAS-before-RAS (CBR), and Hidden
• JEDEC standard pinout
• Single power supply:
5V ± 10% or 3.3V ± 10%
• Byte Write and Byte Read operation via
two CAS

Pinout

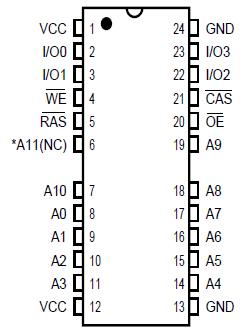

Connection Diagram

Specifications

Symbol	Parameters		Rating	Unit
V_T	Voltage on Any Pin Relative to GND	5V	−1.0 to +7.0	V
		3.3V	−0.5 to +4.6
V_CC	Supply Voltage	5V	−1.0 to +7.0	V
		3.3V	−0.5 to +4.6
I_OUT	Output Current		50	mA
P_D	Power Dissipation		1	W
T_A	Commercial Operation Temperature		0 to +70
	Industrial Operation Temperature		−40 to +85
T_STG	Storage Temperature		−55 to +125

Description

The IC41C4405x Series is a 4,194,304 x 4-bit high-performance CMOS Dynamic Random Access Memory. The Fast Page Mode allows 2,048 or 4096 random accesses within a single row with access cycle time as short as 20 ns per 4-bit word.

These features make the IC41C4405x Series ideally suited for highbandwidth graphics, digital signal processing, high-performance computing systems, and peripheral applications.

The IC41C4405x Series is packaged in a 24-pin 300mil SOJ and a 24 pin TSOP-2
