IC41C44002AS(L)

Features: ·Extended Data-Out (EDO) Page Mode access cycle·TTL compatible inputs and outputs·Refresh Interval:-- 2,048 cycles/32 ms·Refresh Mode:RAS -Only,CAS -before-RAS (CBR), and Hidden· JEDEC standard pinout· Single power supply:5V ± 10% or 3.3V ± 10%· Self Refresh 2048 cycles for S version· Lo...

product image

IC41C44002AS(L) Picture
See larger image
SeekIC No. : 004370349 Detail

IC41C44002AS(L): Features: ·Extended Data-Out (EDO) Page Mode access cycle·TTL compatible inputs and outputs·Refresh Interval:-- 2,048 cycles/32 ms·Refresh Mode:RAS -Only,CAS -before-RAS (CBR), and Hidden· JEDEC sta...

IC41C44002AS(L) Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IC41C44002AS(L)
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Extended Data-Out (EDO) Page Mode access cycle
·TTL compatible inputs and outputs
·Refresh Interval:-- 2,048 cycles/32 ms
·Refresh Mode: RAS -Only,CAS -before-RAS  (CBR), and Hidden
· JEDEC standard pinout
· Single power supply:5V ± 10%  or  3.3V ± 10%
· Self Refresh 2048 cycles for S version
· Low power for L version.


Pinout

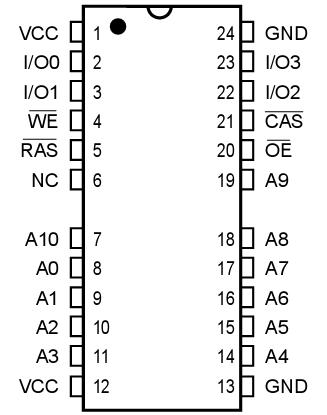

Connection Diagram


Specifications

Symbol Parameters Rating Unit
VT Voltage on Any Pin Relative to GND 5V
3.3V		 -1.0 to +7.0
-0.5 to +4.6		 V
VCC Supply Voltage 5V
3.3V		 -1.0 to +7.0
-0.5 to +4.6		 V
IOUT Output Current 50 mA
PD Power Dissipation 1 W
TA Commercial Operation Temperature 0 to +70
TSTG TA Commercial Operation Temperature -55 to +125



Description

The IC41C44002AS(L) is a 4,194,304 x 4-bit high-performance CMOS  Dynamic Random Access Memory.  These devices offer an accelerated cycle access called EDO Page Mode. EDO Page Mode allows 2,048 random accesses within a single row with access cycle time as short as 20 ns per 4-bit word.


These features make the IC41C44002AS(L) Series ideally suited for high-bandwidth graphics, digital signal processing, high-performance computing systems, and peripheral applications.


The IC41C44002AS(L) Series is packaged in a 24-pin 300mil SOJ and a 24 pin TSOP-2
