IC41C16257

Features: • Fast access and cycle time• TTL compatible inputs and outputs• Refresh Interval: 512 cycles/8 ms• Refresh Mode: RAS-Only, CAS-before-RAS (CBR), Hidden• Self Refresh Mode: 512 cycles/64 ms (S version only)• JEDEC standard pinout• Single power su...

product image

IC41C16257 Picture
See larger image
SeekIC No. : 004370342 Detail

IC41C16257: Features: • Fast access and cycle time• TTL compatible inputs and outputs• Refresh Interval: 512 cycles/8 ms• Refresh Mode: RAS-Only, CAS-before-RAS (CBR), Hidden• Self...

IC41C16257 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IC41C16257
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Fast access and cycle time
• TTL compatible inputs and outputs
• Refresh Interval: 512 cycles/8 ms
• Refresh Mode: RAS-Only, CAS-before-RAS (CBR), Hidden
• Self Refresh Mode: 512 cycles/64 ms (S version only)
• JEDEC standard pinout
• Single power supply:
- 5V ± 10% (IC41C16257)
- 3.3V ± 10% (IC41LV16257)
• Byte Write and Byte Read operation via two CAS
• Available in 40-pin SOJ and TSOP-2

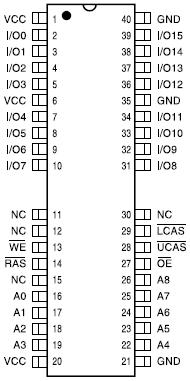

Pinout

Connection Diagram


Specifications

Symbol Parameters
Rating
Unit
VT Voltage on Any Pin Relative to GND
5V
3.3V
1.0 to +7.0
0.5 to +4.6
V
V
VCC Supply Voltage
5V
3.3V
1.0 to +7.0
0.5 to +4.6
V
V
IOUT Output Current
50
mA
PD Power DICSIpation
1
W
TA Operation Temperature
Com.
Ind.
0 to +70
-40 to +85

TSTG Storage Temperature
55 to +125
1. Stress greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.


Description

The ICSI IC41C16257 and the IC41LV16257 are 262,144 x 16-bit high-performance CMOS Dynamic Random Access Memory. Fast Page Mode allows 512 random accesses within a single row with access cycle time as short as 12 ns per 16-bit word. The Byte Write control, of upper and lower byte, makes these devices ideal for use in 16-, 32-bit wide data bus systems.

These features make the IC41C16257 and the IC41LV16257 ideally suited for high band-width graphics, digital signal processing, high-performance computing systems, and peripheral applications.

The IC41C16257 and the IC41LV16257 are packaged in a 40-pin, 400mil SOJ and TSOP-2.
