HYS72D128020GR-7-B

Features: • 184-pin Registered 8-Byte Dual-In-Line DDR-I SDRAM Module for PC and Server main memory applications• One bank 32M × 72, 64M x 72, and two bank 64M x 72 and 128M × 72 organization• JEDEC standard Double Data Rate Synchronous DRAMs (DDR-I SDRAM) with a single + 2.5 V (...

product image

HYS72D128020GR-7-B Picture
See larger image
SeekIC No. : 004369489 Detail

HYS72D128020GR-7-B: Features: • 184-pin Registered 8-Byte Dual-In-Line DDR-I SDRAM Module for PC and Server main memory applications• One bank 32M × 72, 64M x 72, and two bank 64M x 72 and 128M × 72 organiz...

HYS72D128020GR-7-B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HYS72D128020GR-7-B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/20

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 184-pin Registered 8-Byte Dual-In-Line DDR-I SDRAM Module for PC and Server main memory applications
• One bank 32M × 72, 64M x 72, and two bank 64M x 72 and 128M × 72 organization
• JEDEC standard Double Data Rate Synchronous DRAMs (DDR-I SDRAM) with a single + 2.5 V (± 0.2 V) power supply
• Built with 256Mbit DDR-I SDRAMs in 66- Lead TSOPII package
• Programmable CAS Latency, Burst Length, and Wrap Sequence (Sequential & Interleave)
• Auto Refresh (CBR) and Self Refresh
• All inputs and outputs SSTL_2 compatible
• Re-drive for all input signals using register and PLL devices.
• Serial Presence Detect with E2PROM
• Jedec standard MO-206 form factor: 133.35 mm(nom.) × 43.18 mm(nom.) × 4.00 mm (max.) (6,80 mm max. with stacked components)
• Jedec standard reference layout: Raw Cards A, B and C
• Gold plated contacts


Pinout

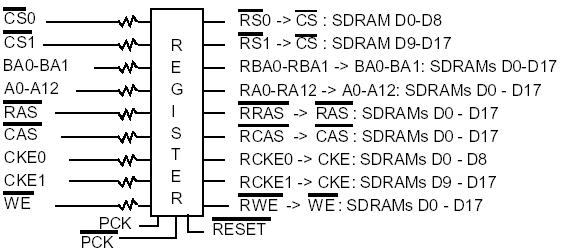

Connection Diagram


Specifications

Parameter Symbol Limit Values Unit
min. max.
Input / Output voltage relative to VSS VIN, VOUT 0.5 3.6 V
Input / Output voltage relative to VSS VDD, VDDQ 0.5 3.6 V
Storage temperature range TSTG -55 +150
Power dissipation (per SDRAM component) PD 1 W
Data out current (short circuit) IOS 50 mA



Description

The HYS72D128020GR-7-B are industry standard 184-pin 8-byte Dual in-lineMemory Modules (DIMMs) organized as 32M × 72 (256MB), 64M × 72 (512MB) and 128M × 72 (1GB). The memory array is designed with Double Data Rate Synchronous DRAMs for ECC applications. All control and address signals are re-driven on the DIMM using register devices and a PLL for the clock distribution. This reduces capacitive loading to the system bus, but adds one cycle to the SDRAM timing. A variety of decoupling capacitors are mounted on the PC board.

The DIMMs feature of the HYS72D128020GR-7-B serial presence detect based on a serial E2PROM device using the 2-pin I2C protocol. The first 128 bytes are programmed with configuration data and the second 128 bytes are available to the customer.
