HYM324020GS-70

PinoutSpecificationsOperation temperature range ........................................ 0 to + 70 °CStorage temperature range........................................ 55 to 125 °CSoldering temperature .......................................................... 260 °CSoldering time.....................

product image

HYM324020GS-70 Picture
See larger image
SeekIC No. : 004369213 Detail

HYM324020GS-70: PinoutSpecificationsOperation temperature range ........................................ 0 to + 70 °CStorage temperature range........................................ 55 to 125 °CSoldering temperatu...

HYM324020GS-70 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HYM324020GS-70
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Pinout

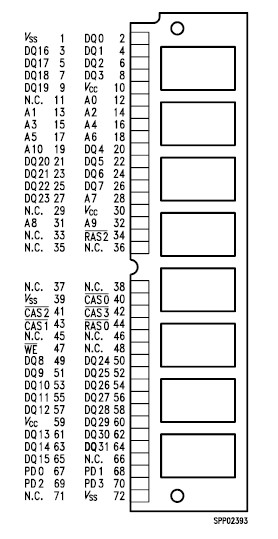

Connection Diagram


Specifications

Operation temperature range ........................................ 0 to + 70 °C
Storage temperature range........................................ 55 to 125 °C
Soldering temperature ..........................................................  260 °C
Soldering time...............................................................................10 s
Input/output voltage ...................... . 0.5 V to min (VCC + 0.5, 7.0) V
Power supply voltage........................................................ 1 to + 7 V
Power dissipation...................................................................... 6.16 W
Data out current (short circuit) .................................................. 50 mA
Note:Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage of the device. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.


Description

The HYM HYM324020GS-70 is a 16 M Byte DRAM module organized as 4 194 304 words by 32-bit in a 72-pin single-in-line package comprising eight HYB 5117400BJ 4M x 4 DRAMs in 300 mil wide SOJ-packages mounted together with eight 0.2 F ceramic decoupling capacitors on a PC board.

The HYM HYM324020GS-70 can also be used as a 8 388 608 words by 16-bits dynamic RAM module by means of connecting DQ0 and DQ16, DQ1 and DQ17, DQ2 and DQ18, ., DQ15 and DQ31, respectively.

Each HYB HYM324020GS-70 is described in the data sheet and is fully electrical tested and processed according to SIEMENS standard quality procedure prior to module assembly. After assembly onto the board, a further set of electrical tests is performed.

The speed of the HYM324020GS-70 module can be detected by the use of four presence detect pins.

The common I/O feature on the HYM HYM324020GS-70 dictates the use of early write cycles.
