Product Details

Description



Pinout

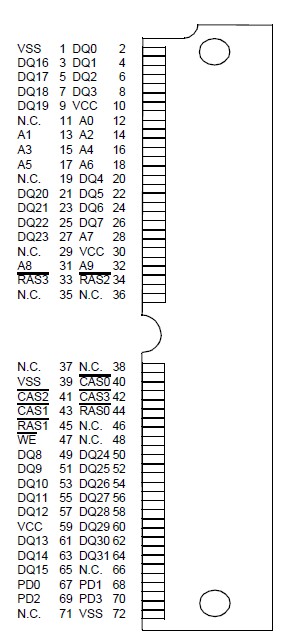

Connection Diagram


Specifications

Operating temperature range ..........................................0 to + 70 °C
Storage temperature range...................................... 55 to + 125 °C
Input/output voltage ......................................................... 1 to + 7 V
Power supply voltage......................................................... 1 to + 7 V
Power dissipation........................................................................2.52 W
Data out current (short circuit) ....................................................50 mA
Note: Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.


Description

The HYM HYM322005GS-60 is a 8 MByte EDO - DRAM module organized as 2 097 152 words by 32-bit in a 72-pin single-in-line package comprising four HYB 5118160BSJ 1M ´ 16 EDO - DRAMs in 400 mil wide SOJ-packages mounted together with four 0.2 mF ceramic decoupling capacitors on a PC board.

Each HYB HYM322005GS-60 is described in the data sheet and is fully electrically tested and processed according to Siemens standard quality procedure prior to module assembly. After assembly onto the board, a further set of electrical tests is performed.

The speed of the HYM322005GS-60 module can be detected by the use presence detect pins.

The common I/O feature on the HYM HYM322005GS-60 dictates the use of early write cycles.
