Product Details

Description



Features:

·  Fully static operation and Tri-state outputs
·  TTL compatible inputs and outputs
·  Low power consumption
·  Battery backup(LL-part)
-. 2.0V(min) data retention
·  Standard pin configuration
-. 32pin 525mil SOP
-. 32pin 400mil TSOP-II
(Standard and Reversed)

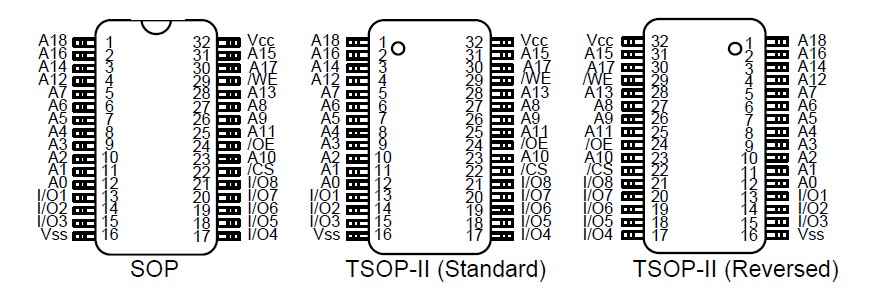

Pinout

Connection Diagram


Specifications

Symbol
Parameter
Rating
Unit
Vcc,VIN, VOUT
 Power Supply, Input/Output Voltage
-0.5 to 4.0
V
TA
 Operating Temperature HY62U8400A
0 to 70
°C
HY62U8400A-E
-25 to 85
°C
HY62U8400A-I
-40 to 85
°C
TSTG
 Storage Temperature
-65 to 125
°C
PD
 Power Dissipation
1.0
W
IOUT
 Data Output Current
50
mA
TSOLDER
 Ball Soldering Temperature & Time
260 ·10
°C·sec
Note
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is stress rating only and the functional operation of the device under these or any other conditions above those indicated in the operation of this specification is not implied.
Exposure to the absolute maximum rating conditions for extended period may affect reliablity


Description

The HY62U8400A is a high-speed, low power and 4M bits CMOS SRAM organized as 512K words by 8 bits. It uses Hynix's high performance twin tub CMOS process technology and was designed for high-speed and low power circuit technology. It is particularly well suited for use in high-density and low power system applications. This device has a data retention mode that guarantees data to remain valid at the minimum power supply voltage of 2.0V.
