HY62U8100B

Features: · Fully static operation and Tri-state output· TTL compatible inputs and outputs· Battery backup(LL-part)-. 2.0V(min) data retention· Standard pin configuration-. 32 - SOP - 525mil-. 32 - TSOP-I - 8X20(Standard and Reversed)-. 32 - sTSOP-I - 8X13.4(Standard and Reversed)PinoutSpecificati...

product image

HY62U8100B Picture
See larger image
SeekIC No. : 004368387 Detail

HY62U8100B: Features: · Fully static operation and Tri-state output· TTL compatible inputs and outputs· Battery backup(LL-part)-. 2.0V(min) data retention· Standard pin configuration-. 32 - SOP - 525mil-. 32 - ...

HY62U8100B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HY62U8100B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Fully static operation and Tri-state output
· TTL compatible inputs and outputs
· Battery backup(LL-part)
-. 2.0V(min) data retention
· Standard pin configuration
-. 32 - SOP - 525mil
-. 32 - TSOP-I - 8X20(Standard and Reversed)
-. 32 - sTSOP-I - 8X13.4
(Standard and Reversed)

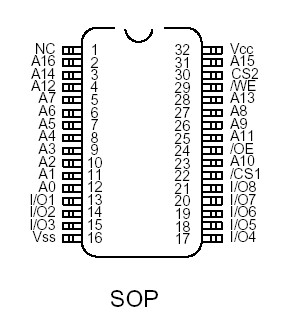

Pinout

Connection Diagram


Specifications

Parameter Symbol Rating Unit Remark
Power Supply, Input/Output Voltage
Operating Temperature


Storage Temperature
Power Dissipation
Data Output Current
Lead Soldering Temperature & Time
Vcc, VIN, VOUT
TA


TSTG
PD
IOUT
TSOLDER
-0.3 to 4.6
0 to 70
-25 to 85
-40 to 85
-65 to 125
10
50
260 · 10
V
°C
°C
°C
°C
W
mA
°C·sec
HY62U8100B
HY62U8100B-E
HY62U8100B-I



Note
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is stress rating only and the functional operation of the device under these or any other conditions above those indicated in the operation of this specification is not implied. Exposure to the absolute maximum rating conditions for extended period may affect reliability.




Description

The HY62U8100B is a high speed, low power and 1M bit CMOS SRAM organized as 131,072 words by 8bit. It uses high performance CMOS process technology and designed for high speed low power circuit technology. It is particulary well suited for used in high density low power system application. This device has a data retention mode that guarantees data to remain valid at a minimum power supply voltage of 2.0V.
