Product Details

Description



Features:

·  Fully static operation and Tri-state output
·  TTL compatible inputs and outputs
·  Battery backup(LL/SL-part)
     - 1.2V(min) data retention
·  Standard pin configuration
     - 48-fBGA

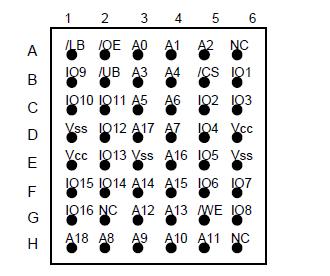

Pinout

Connection Diagram


Specifications

Symbol Parameter Rating Unit Remark
VIN,VOUT Input/Output Voltage -0.3 to Vcc+0.3 V
Vcc Power Supply -0.3 to 2.6V V
0 to 70 °C HY62SF16804B-C
TA Operating Temperature -40 to 85 °C HY62SF16804B-I
TSTG Storage Temperature -55 to 150 °C
PD Power Dissipation 1.0 W
TSOLDER Ball Soldering Temperature & Time 260 · 10 °C · sec
Note
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent
    damage to the device. This is stress rating only and the functional operation of the device under these or
    any other conditions above those indicated in the operation of this specification is not implied.
    Exposure to the absolute maximum rating conditions for extended period may affect reliability.


Description

The HY62SF16804B is a high speed, super low power and 8Mbit full CMOS SRAM organized as 512K words by 16bits. The HY62SF16804B uses high performance full CMOS process technology and is designed for high speed and low power circuit technology. It is particularly well-suited for the high density low power system application. This device has a data retention mode that guarantees data to remain valid at a minimum power supply voltage of 1.2V.
