HY62SF16404E

Features: · Fully static operation and Tri-state output· TTL compatible inputs and outputs· Battery backup -. 1.2V(min) data retention· Standard pin configuration -. 48-ball FBGAPinoutSpecifications Symbol Parameter Rating Unit Remark VIN, VOUT Input/Output Voltage -0.3 to VCC+0.3V ...

product image

HY62SF16404E Picture
See larger image
SeekIC No. : 004368379 Detail

HY62SF16404E: Features: · Fully static operation and Tri-state output· TTL compatible inputs and outputs· Battery backup -. 1.2V(min) data retention· Standard pin configuration -. 48-ball FBGAPinoutSpecifications...

HY62SF16404E Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HY62SF16404E
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  Fully static operation and Tri-state output
·  TTL compatible inputs and outputs
·  Battery backup
       -. 1.2V(min) data retention
·  Standard pin configuration
       -. 48-ball FBGA

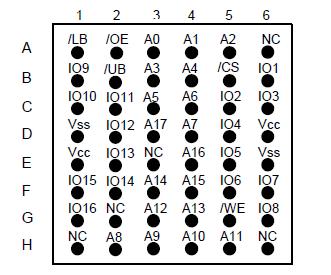

Pinout

Connection Diagram


Specifications

Symbol Parameter Rating Unit Remark
VIN, VOUT Input/Output Voltage -0.3 to VCC+0.3V V
Vcc Power Supply -0.3 to 2.6 V
TA Operating Temperature -40 to 85 °C HY62SF16404E-I
TSTG Storage Temperature -55 to 150 °C
PD Power Dissipation 1.0 W
TSOLDER Ball Soldering Temperature & Time 260 · 10 °C·sec
Note 1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the
            device. This is stress rating only and the functional operation of the device under these or any other conditions
            above those indicated in the operation of this specification is not implied. Exposure to the absolute maximum rating
            conditions for extended period may affect reliability.


Description

The HY62SF16404E is a high speed, super low power and 4Mbit full CMOS SRAM organized as 256K words by 16bits. It uses high performance full CMOS process technology and is designed for high speed and low power circuit technology. HY62SF16404E is particularly well-suited for the high density low power system application. This device has a data retention mode that guarantees data to remain valid at a minimum power supply voltage of 1.2V.
