Product Details

Description



Features:

·  Fully static operation and Tri-state output
·  TTL compatible inputs and outputs
·  Battery backup(L-part)
     -. 1.2V(min) data retention
·  Standard pin configuration
     -. 48-TSOP1(12mm X 14mm, 12mm X 18mm)

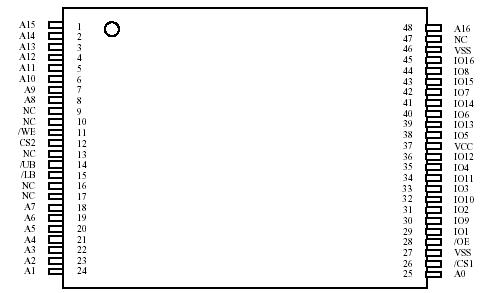

Pinout

Connection Diagram


Specifications

Symbol Parameter Rating Unit Remark
VIN, VOUT Input/Output Voltage -0.3 to 3.3 V
Vcc Power Supply -0.3 to 3.3 V
TA Operating Temperature 0 to 70 °C
TSTG Storage Temperature -40 to 125 °C
PD Power Dissipation 1.0 W
TSOLDER Ball Soldering Temperature & Time 260 · 10 °C·sec

Note :
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is stress rating only and the functional operation of the device under these or any other conditions above those indicated in the operation of this specification is not implied. Exposure to the absolute maximum rating conditions for extended period may affect reliability.




Description

The HY62LF16206A-LT12C is a high speed, super low power and 2Mbit full CMOS SRAM organized as 128K words by 16bits. The HY62LF16206A uses high performance full CMOS process technology and is designed for high speed and low power circuit technology. It is particularly well-suited for the high density low power system application.

This device HY62LF16206A-LT12C has a data retention mode that guarantees data to remain valid at a minimum power supply voltage of 1.2V.
