Features:

• Voltage : VDD, VDDQ 3.3V supply voltage
• All device pins are compatible with LVTTL interface
• JEDEC standard 400mil 86pin TSOP-II with 0.5mm of pin pitch
• All inputs and outputs referenced to positive edge of system clock
• Data mask function by DQM 0, 1, 2 and DQM 3
• Internal four banks operation
• Auto refresh and self refresh
• 4096 Refresh cycles / 64ms
• Programmable Burst Length and Burst Type
    - 1, 2, 4, 8 or full page for Sequential Burst
    - 1, 2, 4 or 8 for Interleave Burst
• Programmable CAS Latency ; 2, 3 Clocks
• Burst Read Single Write operation



Pinout

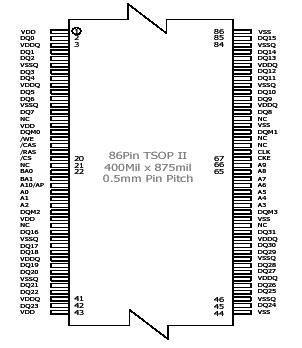

  Connection Diagram


Specifications

Parameter Symbol Rating Unit
Ambient Temperature TA -40 ~ 85 oC
Storage Temperature TSTG -55 ~ 125 oC
Voltage on Any Pin relative to VSS VIN, VOUT -1.0 ~ 4.6 V
Voltage on VDD relative to VSS VDD -1.0 ~ 4.6 V
Voltage on VDDQ relative to VSS VDDQ -1.0 ~ 4.6 V
Short Circuit Output Current IOS 50 mA
Power Dissipation PD 1 W
Soldering Temperature . Time TSOLDER 260 . 10 oC . Sec



Description

The Hynix HY57V643220D(L/S)T(P) series is a 67,108,864bit CMOS Synchronous DRAM, ideally suited for the memory applications which require wide data I/O and high bandwidth. HY57V643220D(L/S)T(P) is organized as 4banks of 524,228x32.

HY57V643220D(L/S)T(P) is offering fully synchronous operation referenced to a positive edge of the clock. All inputs and outputs are synchronized with the rising edge of the clock input. The data paths are internally pipelined to achieve very high bandwidth. All input and output voltage levels are compatible with LVTTL.

HY57V643220D Programmable options include the length of pipeline (Read latency of 2 or 3), the number of consecutive read or write cycles initiated by a single control command (Burst length of 1,2,4,8 or full page), and the burst count sequence(sequential or interleave). A burst of read or write cycles in progress can be terminated by a burst terminate command or can be interrupted and replaced by a new burst read or write command on any cycle. (This pipelined design is not restricted by a '2N' rule)
