Product Details

Description



Features:

• JEDEC standard 3.3V power supply
• All device pins are compatible with LVTTL interface
• JEDEC standard 400mil 86pin TSOP-II with 0.5mm of pin pitch
• All inputs and outputs referenced to positive edge of system clock
• Data mask function by DQM0,1,2 and 3
• Internal four banks operation
• Auto refresh and self refresh
• 4096 refresh cycles / 64ms
• Programmable Burst Length and Burst Type
    - 1, 2, 4, 8 or full page for Sequential Burst
    - 1, 2, 4 or 8 for Interleave Burst
• Programmable CAS Latency ; 2, 3 Clocks
• Burst Read Single Write operation



Pinout

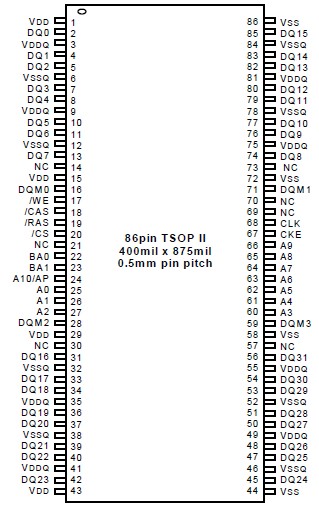

  Connection Diagram


Specifications

Parameter
Symbol
Rating
Unit
Ambient Temperature
TA
0 ~ 70
Storage Temperature
TSG
-55 ~ 125
Voltage on Any Pin relative to VSS
VIN, VOUT
-1.0 ~ 4.6
V
Voltage on VDD relative to VSS
VDD,VDDQ
-1.0 ~ 4.6
V
Short Circuit Output Current
IOS
50
mA
Power Dissipation
PD
1
W
Soldering Temperature . Time
TSOLDER
260 . 10
. sec
Note : Operation at above absolute maximum rating can adversely affect device reliability


Description

The Hynix HY57V643220C is a 67,108,864-bit CMOS Synchronous DRAM, ideally suited for the memory applications which require wide data I/O and high bandwidth. HY57V643220C is organized as 4banks of 524,288x32.

HY57V643220C is offering fully synchronous operation referenced to a positive edge of the clock. All inputs and outputs are synchronized with the rising edge of the clock input. The data paths are internally pipelined to achieve very high bandwidth. All input and output voltage levels are compatible with LVTTL.

HY57V643220C Programmable options include the length of pipeline (Read latency of 2 or 3), the number of consecutive read or write cycles initiated by a single control command (Burst length of 1,2,4,8 or full page), and the burst count sequence(sequential or interleave). A burst of read or write cycles in progress can be terminated by a burst terminate command or can be interrupted and replaced by a new burst read or write command on any cycle. (This pipelined design is not restricted by a `2N` rule.)
