HY57V641620E(L)T(P)-xI

Features: • Voltage: VDD, VDDQ 3.3V supply voltage• All device pins are compatible with LVTTL interface• 54 Pin TSOPII (Lead or Lead Free Package)• All inputs and outputs referenced to positive edge of system clock• Data mask function by UDQM, LDQM• Internal fou...

product image

HY57V641620E(L)T(P)-xI Picture
SeekIC No. : 004368258 Detail

HY57V641620E(L)T(P)-xI: Features: • Voltage: VDD, VDDQ 3.3V supply voltage• All device pins are compatible with LVTTL interface• 54 Pin TSOPII (Lead or Lead Free Package)• All inputs and outputs ref...

floor Price/Ceiling Price

Part Number:
HY57V641620E(L)T(P)-xI
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Voltage: VDD, VDDQ 3.3V supply voltage
• All device pins are compatible with LVTTL interface
• 54 Pin TSOPII (Lead or Lead Free Package)
• All inputs and outputs referenced to positive edge of system clock
• Data mask function by UDQM, LDQM
• Internal four banks operation
• Auto refresh and self refresh
• 4096 Refresh cycles / 64ms
• Programmable Burst Length and Burst Type
- 1, 2, 4, 8 or full page for Sequential Burst
- 1, 2, 4 or 8 for Interleave Burst
• ProgrammableCAS Latency; 2, 3 Clocks
• Burst Read Single Write operation



Pinout

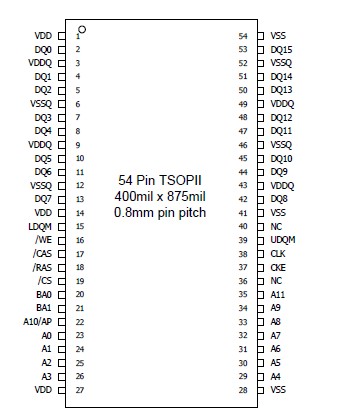

  Connection Diagram


Specifications

Parameter
Symbol
Rating
Unit
Ambient Temperature
TA
-40 ~ 85
oC
Storage Temperature
TSTG
-55 ~ 125
oC
Voltage on Any Pin relative to VSS
VIN, VOUT
-1.0 ~ 4.6
V
Voltage on VDD relative to VSS
VDD, VDDQ
-1.0 ~ 4.6
V
Short Circuit Output Current
IOS
50
mA
Power Dissipation
PD
1
W
Soldering Temperature / Time
TSOLDER
260 / 10
oC /  ec



Description

The Hynix HY57V641620E(L)T(P)-xI series is a 67,108,864bit CMOS Synchronous DRAM, ideally suited for the memory
applications which require wide data I/O and high bandwidth. HY57V641620E(L/S)T(P) is organized as 4banks of 1,048,576x16.

HY57V641620E(L)T(P)-xI is offering fully synchronous operation referenced to a positive edge of the clock. All inputs and outputs are synchronized with the rising edge of the clock input. The data paths are internally pipelined to achieve very high bandwidth. All input and output voltage levels are compatible with LVTTL.

HY57V641620E(L)T(P)-xI Programmable options include the length of pipeline (Read latency of 2 or 3), the number of consecutive read or write
cycles initiated by a single control command (Burst length of 1,2,4,8 or full page), and the burst count sequence(sequential or interleave). A burst of read or write cycles in progress can be terminated by a burst terminate command or can be interrupted and replaced by a new burst read or write command on any cycle. (This pipelined design is not restricted by a '2N' rule)
