HY57V281620A

Features:

• Single 3.3 ± 0.3V power supply
• All device pins are compatible with LVTTL interface
• JEDEC standard 400mil 54pin TSOP-II with 0.8mm
  of pin pitch
• All inputs and outputs referenced to positive edge of
  system clock
• Data mask function by UDQM or LDQM
• Internal four banks operation
• Single 3.3 ± 0.3V power supply
• All device pins are compatible with LVTTL interface
• JEDEC standard 400mil 54pin TSOP-II with 0.8mm
   of pin pitch
• All inputs and outputs referenced to positive edge of
   system clock
• Data mask function by UDQM or LDQM
• Internal four banks operation

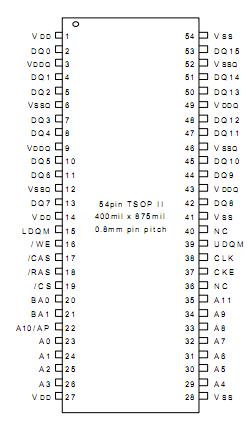

Pinout




Specifications

Parameter	Symbol	Rating	Unit
Ambient Temperature	TA	-40 ~ 85	°C
Storage Temperature	TSTG	-55 ~ 125	°C
Voltage on Any Pin relative to	V SS V IN,	-1.0 ~ 4.6	V
Voltage on V DD relative to , V DDQ	V SS V DD	-1.0 ~ 4.6	V
Short Circuit Output Current	IOS	50	mA
Power Dissipation	PD	1	W
Soldering Temperature × Time	TSOLDER	260 × 10	°C × Sec

Description

The Hynix HY57V281620A is a 134,217,728bit CMOS Synchronous DRAM, ideally suited for the  Mobile applications which require low power consumption and extended temperature range . It is organized as 4banks of 2,097,152x16  HY57V281620A is offering fully synchronous operation referenced to a positive edge of the clock. All inputs and outputs are synchronized with the rising edge of the clock input. The data paths are internally pipelined to achieve very high bandwidth. All input  and output voltage levels are compatible with LVTTL.

HY57V281620A Programmable options include the length of pipeline (Read latency of 2 or 3), the number of consecutive read or write cycles initiated by a single control command (Burst length of 1,2,4,8, or full page), and the burst count sequenc (sequential or interleave). A burst of read or write cycles in progress can be terminated by a burst terminate command or can be interrupted and replaced by a new burst read or write command on any cycle. (This pipelined design is not restricted by a `2N` rule.)
