Product Details

Description



Features:

• Single 3.0V to 3.6V power supply
• All device pins are compatible with LVTTL interface
• JEDEC standard 400mil 50pin TSOP-II with 0.8mm of pin pitch
• All inputs and outputs referenced to positive edge of system clock
• Data mask function by UDQM/LDQM
• Internal two banks operation
• Auto refresh and self refresh
• 4096 refresh cycles / 64ms
• Programmable Burst Length and Burst Type
- 1, 2, 4, 8 and Full Page for Sequence Burst
- 1, 2, 4 and 8 for Interleave Burst
• Programmable CAS Latency ; 1, 2, 3 Clocks
• Pb-free Package



Pinout

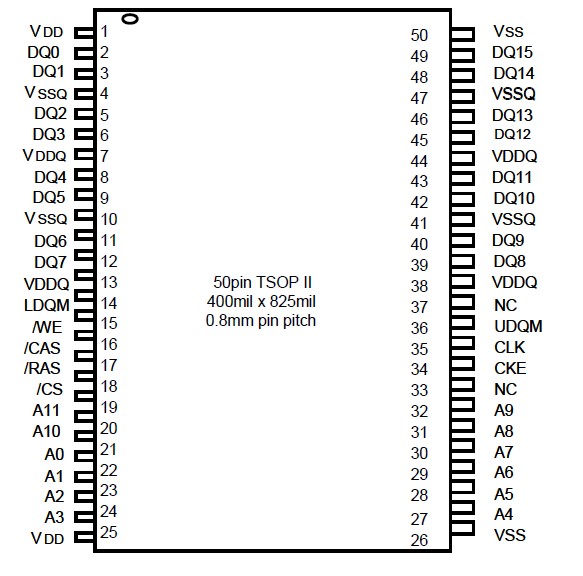

  Connection Diagram


Specifications

Parameter
Symbol
Rating
Unit
Ambient Temperature
TA
0 ~ 70
Storage Temperature
TSG
-55 ~ 125
Voltage on Any Pin relative to VSS
VIN, VOUT
-1.0 ~ 4.6
V
Voltage on VDD relative to VSS
VDD,VDDQ
-1.0 ~ 4.6
V
Short Circuit Output Current
IOS
50
mA
Power Dissipation
PD
1
W
Soldering Temperature ⋅ Time
TSOLDER
260 ⋅ 10
⋅ sec



Description

THE Hynix HY57V161610ETP-I is a 16,777,216-bits CMOS Synchronous DRAM, ideally suited for the main memory and graphic applications which require large memory density and high bandwidth. HY57V161610E is organized as 2banks of 524,288x16.

HY57V161610ETP-I is offering fully synchronous operation referenced to a positive edge clock. All inputs and outputs are synchronized with the rising edge of the clock input. The data paths are internally pipelined to achieve very high bandwidth. All input and output voltage levels are compatible with LVTTL.

HY57V161610ETP-I Programmable options include the length of pipeline (Read latency of 1,2 or 3), the number of consecutive read or write cycles initiated by a single control command (Burst length of 1,2,4,8 or full page), and the burst count sequence(sequential or interleave). A burst of read or write cycles in progress can be terminated by a burst terminate command or can be interrupted and replaced by a new burst read or write command on any cycle. (This pipeline design is not restricted by a `2N` rule.)
