HY23V16202

·Switchable Organization  Byte Mode   : 2,097,152 X 8 bit  Word Mode  : 1,048,576 X 16 bit
·Single 3.3V power supply operation
·Access Time : 100/120ns (Max)
·Standby Current : 50 (Max)
·Operating Current : 35 (Max)
·TTL compatible inputs and outputs
·3-State outputs for wired-OR expansion
·Word or Byte switchable by BHE pin
·Fully static operation
·Package

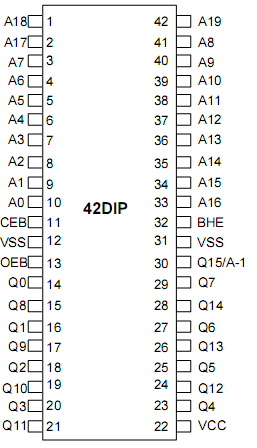

  HY23V16202D       : 42pin Plastic DIP(600 mil)
  HY23V16202S       : 44pin Plastic SOP(500mil)
  HY23V16202T       : 44pin Plastic TSOP-II(400mil)
  HY23V16202M      : 48pin Plastic TSOP-I(12x20mm)
  HY23V16202F       : 48pin Plastic TSOP-I(12x20mm)

The HY23V16202 high performance read only memory  is organized either as  2,097,152 x 8 bit (byte mode) oras 1,048,576 x 16 bit(word mode) followed by BHE mode select.Thelowpowerfeature allows the batteryoperation.
The large sizeof 16M bitmemorydensityis idealforcharactergenerator, dataorprogrammemoryin microprocessorapplication.   The HY23V16202  is packaged 42pin DIP , 44 pin SOP,  44 pinTSOP-II or 48 pin TSOP-I.
