Product Details

Description



Features:

· Low Insertion Loss: 0.6 dB @ 2 GHz
· High Isolation: 33 dB @ 2 GHz
· P1dB: +30 dBm Typical @ -5V
· IP3: 48 dBm
· Low DC Power Consumption
· Low Cost SOP-8 Plastic Package


Pinout

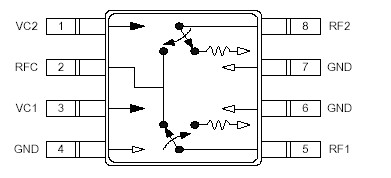

Connection Diagram


Specifications

Parameter
Absolute Maximum
RF Input Power 0.5-2.5 GHz
+34 dBm
Control Voltage
+0.2V, -8.5V
Operating Temperature
-40 to +85
Storage Temperature
-65 to +150



Description

The HWS332 is a GaAs MMIC SPDT terminated switch in a low cost SOP-8 plastic package. The features low insertion loss and high isolation with very low DC power consumption. Typical applications include radio and cellular equipments.
