Product Details

Description



Features:

` BiCMOS/DMOS technology
` Current mode control
` 49% duty cycle operation
` Programmable START/STOP capability
` 15V to 250V input range internal start-up regulator
` 6.0A standby supply current for +VIN <20V
` 0.9mA operating supply current
` 5.0V VDD supply operation
` 30KHz to 300KHz internal oscillator
` 15KHz to 150KHz converter output frequency
` 1.0MHz low offset error amplifier
` 1.25V 2% band gap reference
` Output driver optimized for under 10W applications
` Low driver output impedance with VDD = 0V
` Fast (90nsec) over current shutdown
` All pins are ESD protected


Application

· ISDN network terminations
· ISDN terminals
· ISDN terminal adapters
· Feature phones
· SLIC circuits
· PBX systems
· Modems
· Distributed power systems
· DC/DC converters


Pinout

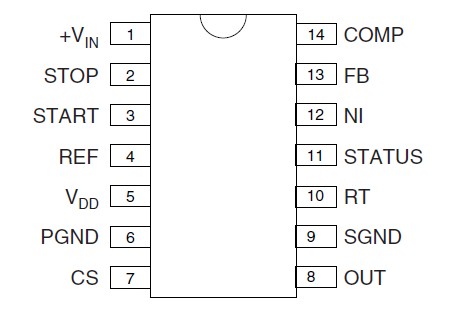

Connection Diagram


Specifications

+VIN, Input Voltage                              -0.5V to +250V
Supply Voltage, VDD                               -0.5V to +10V
Operating Temperature Range           -40°C to +85°C
Storage Temperature Range           -65°C to +150°C
Power Dissipation @ 25°C, SOIC                     750mW
Power Dissipation @ 25°C, Plastic DIP           1000mW
*All voltages referenced to GND


Description

The Supertex HV9605C is a BiCMOS/DMOS single-output, current mode, pulse width modulator IC designed to meet the requirements of ETR-080 for ISDN applications. In a 14 pin package, it provides all the necessary functions to implement a single-switch PWM with a minimum of external parts.

Utilizing Supertex's proprietary BiCMOS/DMOS technology, HV9605C requires less than one tenth of the operating power of conventional bipolar PWM ICs. Dynamic range for regulation is also increased to approximately 8 times that of similar bipolar parts. HV9605C operates directly from any DC input voltage between 15 and 250 VDC. The START and STOP input voltage thresholds can be programmed within the operating input voltage range by means of a resistor divider, provided +V IN(START) > +V IN(STOP). The output stage is push-pull CMOS, eliminating the need for external clamping diodes. The clock frequency is set with a single external resistor.
