HV809

Features: · Processed with HVCMOS® technology· Input voltage up to 200V DC· 400V peak-to-peak output voltage· Output load up to 350nF (100 in2 for 3.5nF/in2 lamp)· Adjustable output lamp frequency· Adjustable On/Off pulsing frequencyApplication· Electronic Organizers· Handheld Portable Compute...

product image

HV809 Picture
See larger image
SeekIC No. : 004367618 Detail

HV809: Features: · Processed with HVCMOS® technology· Input voltage up to 200V DC· 400V peak-to-peak output voltage· Output load up to 350nF (100 in2 for 3.5nF/in2 lamp)· Adjustable output lamp frequen...

HV809 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HV809
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Processed with HVCMOS® technology
· Input voltage up to 200V DC
· 400V peak-to-peak output voltage
· Output load up to 350nF (100 in2 for 3.5nF/in2 lamp)
· Adjustable output lamp frequency
· Adjustable On/Off pulsing frequency


Application

· Electronic Organizers
· Handheld Portable Computers
· Display Signs
· Portable Instrumentation Equipment

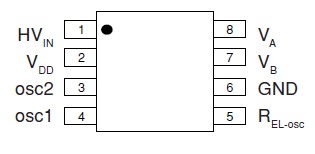

Pinout

Connection Diagram


Specifications

HVIN, Input Voltage                                       +210V
VDD, Internal Logic Voltage                              +15V
Operating Temperature Range      -25°C to +85°C
Storage Temperature Range       -55°C to +150°C
Power Dissipation          SO-8                       500mW
                                    SO-8 + Slug         1.5 Watts
                                    7 Pin TO-220         15 Watts

Note:
*All voltages are referenced to GND.


Description

The Supertex HV809 is an off-line high voltage EL lamp driver integrated circuit designed for driving EL lamps of up to 350nF at 400Hz. The input supply voltage can be a rectified nominal 120V AC source or any other DC source up to 200V. It will supply the EL lamp with an AC square wave with a peak-to-peak voltage of two times the input DC voltage.

The HV809 has two internal oscillators, a low output voltage linear regulator, and a high voltage output H-bridge. The high voltage output H-bridge frequency is set by an external resistor connected between the R EL-osc and GND pins. The EL lamp is connected between VA and VB. For the HV809 in the 8-pin package, an external RC network can be connected between the oscillator's osc1 and osc2 pins to pulse the EL lamp on and off.
