HV6810

Features: · High output voltage 80V· High speed 5MHz @ 5VDD· Low power IBB £ 0.1mA (All high)· Active pull down 100mA min· Output source current 100mA at 60V VPP· Each device drives 10 lines· High-speed serially-shifted data input· 5V CMOS-compatible inputs· Latches on all driver outputs· Pi...

product image

HV6810 Picture
See larger image
SeekIC No. : 004367582 Detail

HV6810: Features: · High output voltage 80V· High speed 5MHz @ 5VDD· Low power IBB £ 0.1mA (All high)· Active pull down 100mA min· Output source current 100mA at 60V VPP· Each device drives 10 lines· ...

HV6810 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HV6810
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· High output voltage 80V
· High speed 5MHz @ 5VDD
· Low power IBB £ 0.1mA (All high)
· Active pull down 100mA min
· Output source current 100mA at 60V VPP
· Each device drives 10 lines
· High-speed serially-shifted data input
· 5V CMOS-compatible inputs
· Latches on all driver outputs
· Pin-compatible improved replacement for UCN5810A and TL4810A, TL4810B

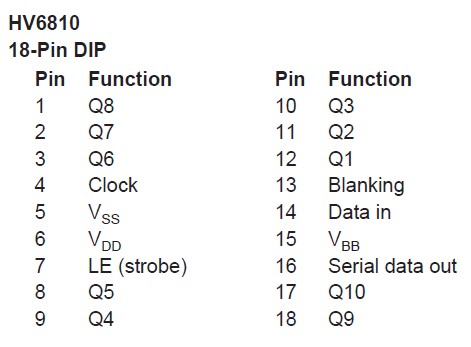

Pinout

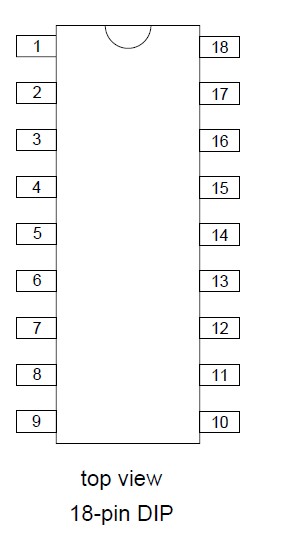

Connection Diagram  Connection Diagram


Specifications

Logic supply voltage, VDD2                                                 7.5V
Driver supply voltage, VBB2                                                 90V
Output voltage2                                                                  90V
Input voltage2                                            -0.3V to VDD + 0.3V
Continuous total power dissipation       18-Pin P-DIP3     900mW
at 25°C free-air temperature 3            20-Pin SOIC4   1000mW
                                                           20-Pin PLCC4   1000mW
Operating Temperature Range                           -40° to +85*C
Notes:
1. Over operating free-air temperature.
2. All voltages are referenced to VSS.
3. For operation above 25°C ambient derate linearly to 85°C at 15mW/°C.
4. For operation above 25°C ambient derate linearly to 85°C at 16.7mW/°C.


Description

The HV6810 is a monolithic integrated circuit designed to drive a dot matrix or segmented vacuum fluorescent display (VFD). These devices feature a serial data output to cascade additional devices for large displays.

A 10-bit data word is serially loaded into the shift register HV6810 on the positive-going transition of the clock. Parallel data is transferred to the output buffers through a 10-bit D-type latch while the latch enable input is high and is latched when the latch enable is low. When the blanking input is high, all outputs are low.

Outputs of HV6810 are structures formed by double-diffused MOS (DMOS) transistors with output voltage ratings of 80 volts and 25 milliampere source-current capability. All inputs are compatible with CMOS levels
