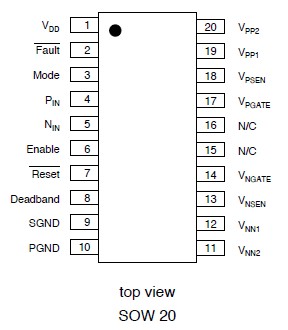

Features: · 105Vrms ring signal· Output over current protection· 5.0V CMOS logic control· Logic enable/disable to save power· Adjustable deadband in single-control mode· Power-on reset· Fault output for problem detectionApplication·Line access cards· Set-top/Street boxPinoutSpecificationsVPP1 VNN...
HV430: Features: · 105Vrms ring signal· Output over current protection· 5.0V CMOS logic control· Logic enable/disable to save power· Adjustable deadband in single-control mode· Power-on reset· Fault output...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
The Supertex HV430 is a high voltage PWM ring generator integrated circuit. The high voltage outputs, VPGATE and VNGATE, are used to drive the gates of external high voltage P-channel and N-channel MOSFETs in a push-pull configuration. Over current protection is implemented for both the P-channel and Nchannel MOSFETs. External sense resistors set the over-current trip point.
The HV430 RESET input functions as a power-on reset when connected to an external capacitor.
The FAULT output indicates an over-current condition and is cleared after 4 consecutive cycles with no overcurrent condition. A logic low on RESET or ENABLE clears the FAULT output. HV430 is active-low and open-drain to allow wire OR'ing of multiple drivers.
HV430's Pgate and Ngate are controlled independently by logic inputs PIN and NIN when the MODE pin is at logic high. A logic high on PIN will turn on the external P-channel MOSFET. Similarly, a logic high on NIN will turn on the external N-channel MOSFET. Lockout circuitry prevents the N and P switches from turning on simultaneously. A pulse width limiter restricts pulse widths to no less than 100- 200ns.
For applications where a single control input is desired, the MODE pin should be connected to SGND. The PWM control signal is then input to the NIN pin. A user-adjustable deadband in the control logic ensures break-before-make on the outputs, thus avoiding cross conduction on the high voltage output during switching. A logic high on NIN will turn the external P-Channel MOSFET on and the N-Channel off, and vice versa. The HV430 can be powered down by applying a logic low on the ENABLE pin, placing both external MOSFETs in the off state.
