Features: ` 32 independent high voltage amplifiers` Output voltage up to 250V` 3V/s output slew rate` Fixed gain of 50V/V` High value internal feedback resistors` Very low operating current (typically 45A per channel)` Integrated silicon diode for temperature sensingApplication· MEMS (microelctrom...
HV254: Features: ` 32 independent high voltage amplifiers` Output voltage up to 250V` 3V/s output slew rate` Fixed gain of 50V/V` High value internal feedback resistors` Very low operating current (typical...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

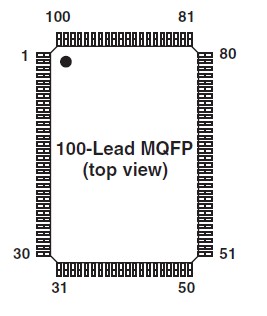

The Supertex HV254 is a 32-channel high voltage amplifier array integrated circuit. It operates on a 275V high voltage supply and two low voltage supplies: +5.0V and 5.0V. Each channel has its own input and output. An integrated diode is included to help monitor die temperature.
The input voltage can be from a DAC with a voltage range of 0V to the low voltage supply, V+. The output of the HV254FG will swing from 7V to 250V. It cannot swing to ground. With the internal gain set at 50V/V, a minimum input signal of 140mV will still maintain linearity. Input voltages below 140mV can be applied without damage to the device HV254. The amplifier, however, will be saturated. Typical output load is equivalent to a 125Mohm resistor in parallel with a 100pF capacitor. The outputs have a guaranteed slew rate of at least 3V/s. The internal closed loop gain is set at a nominal value of 34.0dB (50V/V).
The HV254 is designed to operate with minimal power consumption while maintaining a guaranteed slew rate of 3V/s. High value resistors are used for the gain setting to minimize current on the feedback path.
