Product Details

Description

Features:

• Include 2 transistors in a small size SMD package: EMFPAK6 (6 Leads: 1.2 x 0.8 x 0.5 mm)

Pinout

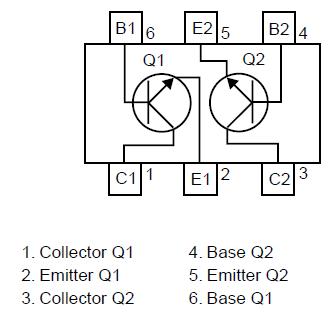

Connection Diagram

Specifications

Item	Symbol	Ratings	Unit
Item	Symbol	Q1 and Q2	Unit
Collector to base voltage	V_CBO	15	V
Collector to emitter voltage	V_CEO	4	V
Emitter to base voltage	V_EBO	1.5	V
Collector current	I_C	50	mA
Collector power dissipation	P_C	Total 200*	mW
Junction temperature	T_j	150	°C
Storage temperature	T_stg	55 to +150	°C

*Value on PCB. (FR4(13 x 13 x 0.635 mm))
