HTG12N0

Features: · Operating voltage: 2.4V~3.5V· Seven input lines· Six output lines· Halt feature reduces power consumption· Up to 4ms instruction cycle with 1MHz system clock· 4Kx 8x 4 program ROM· Data memory RAM size 256x 4 bits· 64 segments ´ 8 commons, 1/5 bias LCD driver· 8-bit table read in...

product image

HTG12N0 Picture
See larger image
SeekIC No. : 004367290 Detail

HTG12N0: Features: · Operating voltage: 2.4V~3.5V· Seven input lines· Six output lines· Halt feature reduces power consumption· Up to 4ms instruction cycle with 1MHz system clock· 4Kx 8x 4 program ROM· Data ...

HTG12N0 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HTG12N0
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Operating voltage: 2.4V~3.5V
· Seven input lines
· Six output lines
· Halt feature reduces power consumption
· Up to 4ms instruction cycle with 1MHz system clock
· 4K x 8 x 4 program ROM
· Data memory RAM size 256 x 4 bits
· 64 segments ´ 8 commons, 1/5 bias LCD driver
· 8-bit table read instruction
· Five working registers
· Internal timer overflow
· One level subroutine nesting
· RC oscillator and 32768Hz crystal oscillator
· 8-bit timer with internal or external clock source
· Sound effect circuit


Pinout

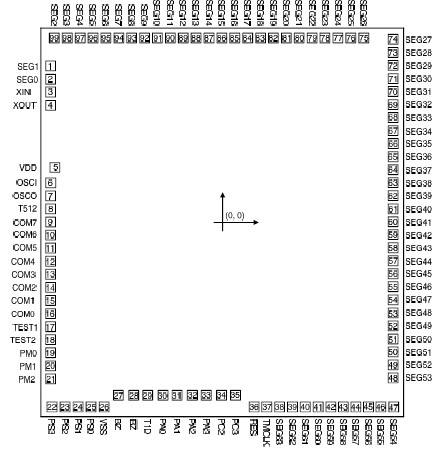

Connection Diagram


Specifications

Supply Voltage .................................0.3V~5.5V
Storage Temperature.................50°C~125°C
Input Voltage.....................VSS0.3V~VDD+0.3V
Operating Temperature................... 0°C~70 °C

Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.




Description

The HTG12N0 is the processor from HOLTEK's 4-bit stand alone single chip microcontroller specially designed for LCD display and time piece product applications.

HTG12N0 is ideally suited for multiple LCD time piece low power applications among which are calculators, scales, calendar and hand held LCD products.
