HT9011

Features: · Operating voltage: 1.1V~3.5V· Constant power supply voltage can be generated by externally adding a transistor: VREG=1.0V typ.· Alarm function sensitivity: VALM=1.1V typ.· Low current consumption: ICCQ=1.1mA typ.· Built-in 2nd stage mixer for double conversion method· Mixer operating f...

product image

HT9011 Picture
See larger image
SeekIC No. : 004367172 Detail

HT9011: Features: · Operating voltage: 1.1V~3.5V· Constant power supply voltage can be generated by externally adding a transistor: VREG=1.0V typ.· Alarm function sensitivity: VALM=1.1V typ.· Low current co...

HT9011 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HT9011
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Operating voltage: 1.1V~3.5V
· Constant power supply voltage can be generated by externally adding a transistor: VREG=1.0V typ.
· Alarm function sensitivity: VALM=1.1V typ.
· Low current consumption: ICCQ=1.1mA typ.
· Built-in 2nd stage mixer for double conversion method
· Mixer operating frequency: 10MHz~50MHz
· Built-in low-pass filter and waveform shaping circuit enable the extraction of FSK signals from voice signals
· Built-in battery-saving function for longer battery life time
· High transmission rate: 1200 bps
· 20-pin SSOP package (0.65mm Pitch)

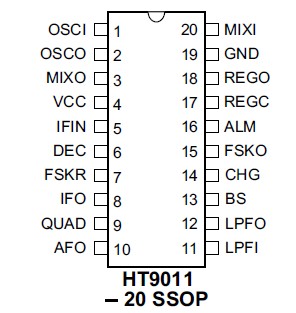

Pinout

Connection Diagram


Specifications

Power Supply Voltage............VCC-0.3V to 4.0V
Power Dissipation ...............................730mW
Operating Temperature range....... .0 to 45
Storage Temperature...............-55 to 150

Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute MaximumRatings " may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.




Description

The HT9011 is designed for FM communication system devices. It combines a paging system, mixer, IF limiter, Quadrature detector, operation amplifier, comparator and more. The HT9011 could provide the customer's PAGER system with total solution along with Holtek's POCSAG Pager Controller series products.
