HT82V36

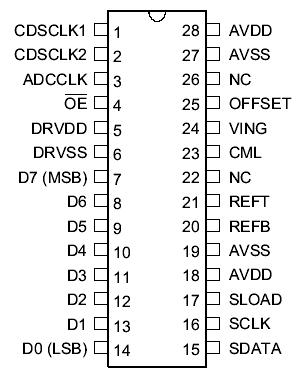

Supply Voltage ..........................V_SS-0.3V to V_SS+3.6V
Input Voltage ...........................V_SS-0.3V to V_DD+0.3V
Storage Temperature ........................-50C to 125
Operating Temperature .......................-25C to 75
Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.

The HT82V36 is a complete analog signal processor for CCD imaging applications. It features a 1-channel architecture designed to sample and condition the outputs of linear CCD arrays. It consists of an input clamp, Correlated Double Sampler (CDS), offset DAC and Programmable Gain Amplifier (PGA), and a low power 16-bit A/D converter.

The CDS amplifiers HT82V36 may be disabled for use with sensors such as Contact Image Sensors (CIS) and CMOS active pixel sensors, which do not require CDS.

The 16-bit digital output is multiplexed into an 8-bit output word that is accessed using two read cycles. The internal registers of HT82V36 are programmed through a 3-wire serial interface, which provides gain, offset and operating mode adjustments.
