HT82M99E

Features: `Flexible total solution for applications that combine PS/2 and low-speed USB interface, such as mice, joysticks, and many others`USB Specification Compliance- Conforms to USB specification V1.1- Conforms to USB HID specification V1.1`Supports 1 Low-speed USB control endpoint and 1 inter...

product image

HT82M99E Picture
See larger image
SeekIC No. : 004367088 Detail

HT82M99E: Features: `Flexible total solution for applications that combine PS/2 and low-speed USB interface, such as mice, joysticks, and many others`USB Specification Compliance- Conforms to USB specificatio...

HT82M99E Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HT82M99E
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/7

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Flexible total solution for applications that combine PS/2 and low-speed USB interface, such as mice, joysticks, and many others
`USB Specification Compliance
- Conforms to USB specification V1.1
- Conforms to USB HID specification V1.1
`Supports 1 Low-speed USB control endpoint and 1 interrupt endpoint
`Each endpoint has 8x8 bytes FIFO
`Integrated USB transceiver
`3.3V regulator output
`External 6MHz or 12MHz ceramic resonator or crystal
`8-bit RISC microcontroller, with 2Kx14 EPROM (000H~7FFH)
`96 bytes RAM (20H~7FH)
`6MHz/12MHz internal CPU clock
`4-level stacks
`Two 7-bit indirect addressing registers
`One 16-bit programmable timer counter with overflow interrupt (shared with PA7, vector 0CH)
`One USB interrupt input (vector 04H)
`HALT function and wake-up feature reduce power consumption
`PA0~PA7, PB4 and PB7 support wake-up function
`Internal Power-On reset (POR)
`Watchdog Timer (WDT)
`12 I/O ports
`18/20-pin DIP, 18/20-pin SOP package




Pinout

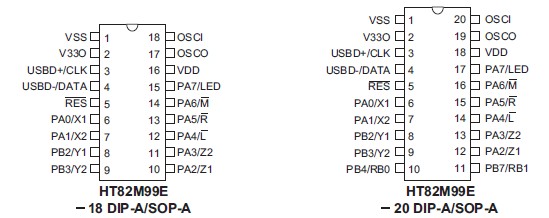

Connection Diagram




Specifications

Supply Voltage .........................VSS-0.3V to VSS+6.0V
Input Voltage........................... VSS-0.3V to VDD+0.3V
Storage Temperature ...........................-50 to 125
Operating Temperature...............................0 to 70

Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.




Description

The USB MCU OTP body is suitable for USB mouse devices. HT82M99E consists of a Holtek high performance 8-bit MCU core for control unit, built-in USB SIE, 2Kx14 EPROM and 96 bytes data RAM.

The mask version HT82M99A is fully pin and functionally compatible with the OTP version HT82M99E device.
