Product Details

Description



Features:

· Low power consumption
· Low voltage drop
· Low temperature coefficient
· High input voltage (up to 24V)
· TO-92 and SOT-89 packages


Application

· Battery-powered equipment
· Communication equipment
· Audio/Video equipment

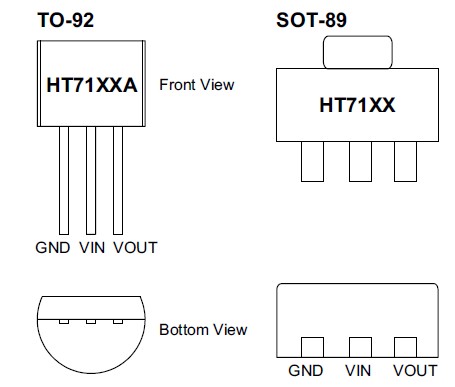

Pinout

Connection Diagram


Specifications

Supply Voltage ............................-0.3V to 28V
Power Consumption ...........................200mW
Storage Temperature ..............-50 to 125
Operating Temperature .................0 to 70

Note: These are stress ratings only. Stresses exceeding the range specified under Absolute Maximum Ratings may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.


Description

The HT71XX series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 24V. They are available with several fixed output voltages ranging from 3.0V to 5.0V. CMOS technology ensures low voltage drop and low quiescent current.

Although designed primarily as fixed voltage regulators, these devices HT71XX can be used with external components to obtain variable voltages and currents.
