HT7136-1

Features: Low power consumption Low voltage dropLow temperature coefficientHigh input voltage (up to 24V) Output voltage accuracy: tolerance ±3%TO-92, SOT-89 and SOT-25 packageApplicationBattery-powered equipment Communication equipment Audio/Video equipmentPinoutSpecificationsSupply Voltage ........

product image

HT7136-1 Picture
See larger image
SeekIC No. : 004366948 Detail

HT7136-1: Features: Low power consumption Low voltage dropLow temperature coefficientHigh input voltage (up to 24V) Output voltage accuracy: tolerance ±3%TO-92, SOT-89 and SOT-25 packageApplicationBattery-pow...

HT7136-1 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HT7136-1
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Low power consumption
Low voltage drop
Low temperature coefficient
High input voltage (up to 24V)
Output voltage accuracy: tolerance ±3%
TO-92, SOT-89 and SOT-25 package




Application

Battery-powered equipment
Communication equipment
Audio/Video equipment

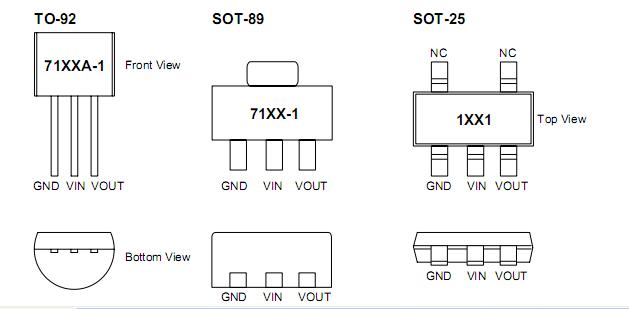

Pinout

Connection Diagram




Specifications

Supply Voltage .........................................0.3V to 26V
Power Consumption (*1) .................................200mW
Power Consumption (*2) .................................150mW
Storage Temperature ........................... 50Cto125C
Operating Temperature ..............................0Cto70C


Note: These are stress ratings only. Stresses exceeding the range specified under Absolute Maximum Ratings may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.
*1: applied to SOT-89 and TO-92
*2: applied to SOT-25




Description

The HT7136-1 series is a set of three-terminal low power high voltage regulators implemented in CMOS technology. They allow input voltages as high as 24V. They are available with several fixed output voltages ranging from 2.1V to 5.0V. CMOS technology ensures low voltage drop and low quiescent current.

Although designed primarily as fixed voltage regulators, these devices HT7136-1 can be used with external components to obtain variable voltages and currents.
