HT6012

Features: · Operating voltage: 2.4V~12V·Low power and high noise immunity CMOS technology·Low standby current·Minimum transmission word·Four words for TE trigger·One word for Data trigger·Built-in oscillator needs only 5% resistor·Easy interface with an RF or an infrared transmission medium·Minima...

product image

HT6012 Picture
See larger image
SeekIC No. : 004366886 Detail

HT6012: Features: · Operating voltage: 2.4V~12V·Low power and high noise immunity CMOS technology·Low standby current·Minimum transmission word·Four words for TE trigger·One word for Data trigger·Built-in o...

HT6012 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HT6012
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Operating voltage: 2.4V~12V
·Low power and high noise immunity CMOS technology
·Low standby current
·Minimum transmission word
·Four words for TE trigger
·One word for Data trigger
·Built-in oscillator needs only 5% resistor
·Easy interface with an RF or an infrared transmission medium
·Minimal external components
·Package information: refer to Selection Table




Application

· Burglar alarm system
·Smoke and fire alarm system
·Garage door controllers
·Car alarm system
·Security system
·Cordless telephones
·Other remote control systems

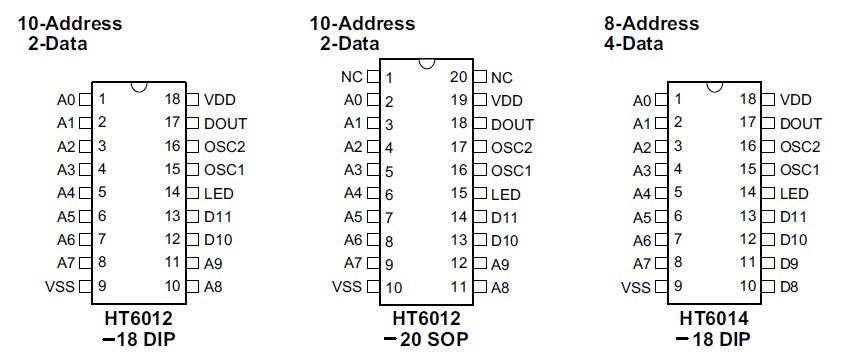

Pinout

Connection Diagram






Specifications

Supply Voltage...............................-0.3V to 13V
Input Voltage....................VSS-0.3 to VDD+0.3V
Storage Temperature.................-50 to 125
Operating Temperature ..............-20 to 75

Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute MaximumRatings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.




Description

The 312 encoders HT6012 are a series of CMOS LSIs for remote control system applications. They are capable of encoding 12 bits of information which consists of N address bits and 12-N data bits. Each address/data input is externally trinary programmable if bonded out. They are otherwise set floating internally. Various packages of the 312 encoders offer flexible combinations of programmable address/data which meet various applications. The programmable address/data is transmitted together with the header bits via an RF or an infrared transmission medium upon receipt of a trigger signal. A TE (HT6010) or a DATA (HT6012/HT6014) trigger can be selected for application flexibility.
