HT507

Voltage Supply Source: Single Supply
Mounting Type: Through Hole
Packaging: Tube
Voltage - Supply, Single/Dual (±): -
Function: Multiplexer
Current - Supply: 50µA
Circuit: 2 x 8:1
Package / Case: 28-DIP (0.600", 15.24mm)
On-State Resistance: 400 Ohm
Supplier Device Package: 28-CDIP
Series: HTMOS™
Manufacturer: Honeywell Microelectronics & Precision Sensors
Operating Temperature: -55°C ~ 225°C


Features:

• Specified Over -55 to +225
• Break-Before-Make Switching
• No Latch-up
• On Resistance 400W at 225
• 8-Channel Leakage 1.2mA at 225
• Split and Single Supply Capability


Application

• Down-Hole Oil Well
• Avionics
• Turbine Engine Control
• Industrial Process Control
• Nuclear Reactor
• Electric Power Conversion
• Heavy Duty Internal Combustion Engines

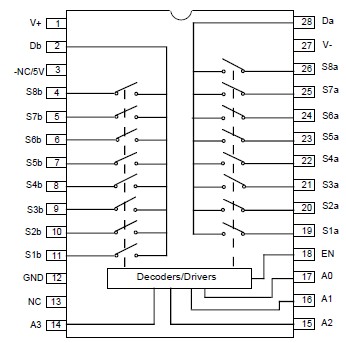

Pinout

Specifications

Voltages Referenced to V-, V+ ...................................................... +15V
Digital Inputs VS, VD...................................................-0.5 to VDD +0.5V
Current (any terminal) .................................................................10 mA
Peak Current, S or D,
     (Pulsed at 1 ms, 10% Duty Cycle Max).................................... 15mA
Storage Temperature .......................................................-65 to +325
Power Dissipation (Package) ......................................................500 mW
ESD Protection..............................................................................1000V


Description

The HT506/HT507 monolithic multiplexers consist of sixteen analog switches, 4-bit decode for channel selection, reference for logic switching thresholds, and enable pin for device deactivation where applications require. These multiplexers are fabricated with Honeywell's dielectrically isolated latch-up free high temperature (HTMOS™) linear process.

Performance is specified over the full -55 to +225°C temperature range. Typically, parts will operate up to +300°C for a year, with derated performance. All parts of HT507 are burned in at 250°C to eliminate infant mortality.

The input buffers are designed to operate from either TTL or CMOS levels while providing a break-before-make action. The HT506 switches one of sixteen inputs to a common output, while the HT507 switches one of eight differential inputs to a differential output. These parts are available in standard pinout 28-pin DIPs.

Parameters:

Technical/Catalog Information	HT507
Vendor	Honeywell Microelectronics & Precision Sensors
Category	Integrated Circuits (ICs)
Type	Multiplexer
Voltage Supply Source	Dual Supply
Voltage - Supply, Single/Dual (±)	4.5 V ~ 5.5 V
Circuit	2 x 8:1
On-State Resistance	400 Ohm
Mounting Type	Through Hole
Package / Case	28-DIP
Packaging	Tube
Current - Supply	-
Operating Temperature	-55°C ~ 225°C
Function	Multiplexer
Drawing Number	*
Lead Free Status	Contains Lead
RoHS Status	RoHS Non-Compliant
Other Names	HT507 HT507
