HT49RV3

Features: · Operating voltage: fSYS=4MHz: 2.2V~5.5V fSYS=8MHz: 3.3V~5.5V· 17 bidirectional I/O lines (PA, PB, PC, PD)· Two external interrupt inputs· Two 16-bit programmable timer/event counters with PFD (programmable frequency divider) function· One 8-bit Remote Control Timer (RMT), pin-shared wi...

product image

HT49RV3 Picture
See larger image
SeekIC No. : 004366877 Detail

HT49RV3: Features: · Operating voltage: fSYS=4MHz: 2.2V~5.5V fSYS=8MHz: 3.3V~5.5V· 17 bidirectional I/O lines (PA, PB, PC, PD)· Two external interrupt inputs· Two 16-bit programmable timer/event counters wit...

HT49RV3 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HT49RV3
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Operating voltage:
  fSYS=4MHz: 2.2V~5.5V
  fSYS=8MHz: 3.3V~5.5V
· 17 bidirectional I/O lines (PA, PB, PC, PD)
· Two external interrupt inputs
· Two 16-bit programmable timer/event counters with
  PFD (programmable frequency divider) function
· One 8-bit Remote Control Timer (RMT), pin-shared with PC7
· Single channel serial interface
· VFD driver with 1111 segments
  (16-segment & 4-grid to 11-segment & 11-grid)
· 2K16 program memory
· 968 data memory RAM
· Supports PFD for sound generation
· Real Time Clock (RTC)
· 8-bit prescaler for RTC
· Watchdog Timer
· Buzzer output
· On-chip crystal, RC and 32768Hz crystal oscillator
· HALT function and wake-up feature reduce power consumption
· 6-level subroutine nesting
· Low voltage reset function
· Bit manipulation instruction
· 16-bit table read instruction
· Up to 0.5s instruction cycle with 8MHz system clock
· 63 powerful instructions
· All instructions in 1 or 2 machine cycles
· 52-pin QFP package


Pinout

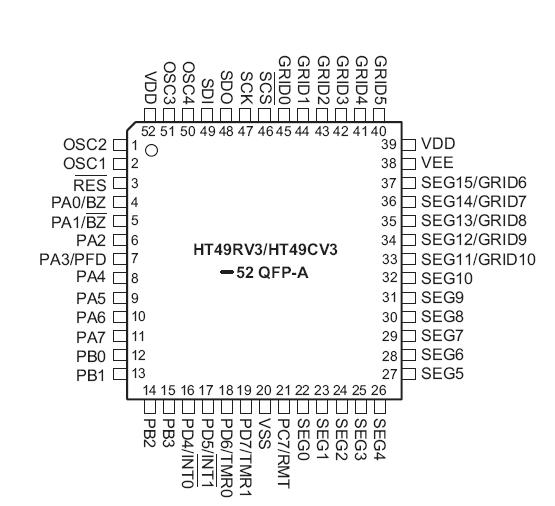

Connection Diagram


Specifications

Supply Voltage ...........................VSS-0.3V to VSS+6.0V
Storage Temperature ...........................-50°C to 125°C
Input Voltage.............................VSS-0.3V to VDD+0.3V
Operating Temperature...........................-40°C to 85°C
IOL Total ............................................................150mA
IOH Total...........................................................-100mA
Total Power Dissipation ....................................500mW
Note: These are stress ratings only. Stresses exceeding the range specified under Absolute Maximum Ratings may
cause substantial damage to the device. Functional operation of this device at other conditions beyond those
listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.


Description

The HT49RV3/HT49CV3 are 8-bit high performance single chip MCUs. Their single cycle instruction and 2-stage pipeline architecture make them suitable for high speed applications. As the devices include an VFD driver they are suitable for use in products which require a front panel for their operation such as DVDs, VCDs, mini-component audio systems, cassette decks, tuners, CD players, other home appliances, etc.
