HT49CV5

Features: · Operating voltage: fSYS=4MHz: 2.2V~5.5V fSYS=8MHz: 3.3V~5.5V· 20 bidirectional I/O lines (PA, PB, PC, PD)· Two external interrupt input·Two 16-bit programmable timer/event counter with PFD (programmable frequency divider) function·One 8-bit Remote Control Timer (RMT), pin share with PC...

product image

HT49CV5 Picture
See larger image
SeekIC No. : 004366865 Detail

HT49CV5: Features: · Operating voltage: fSYS=4MHz: 2.2V~5.5V fSYS=8MHz: 3.3V~5.5V· 20 bidirectional I/O lines (PA, PB, PC, PD)· Two external interrupt input·Two 16-bit programmable timer/event counter with P...

HT49CV5 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HT49CV5
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Operating voltage:
    fSYS=4MHz: 2.2V~5.5V
    fSYS=8MHz: 3.3V~5.5V
· 20 bidirectional I/O lines (PA, PB, PC, PD)
· Two external interrupt input
·Two 16-bit programmable timer/event counter with
    PFD (programmable frequency divider) function
·One 8-bit Remote Control Timer (RMT), pin share with PC7
· One channel serial interface
· VFD driver with 1111 segments
    (16-segment & 4-grid to 11-segment & 11-grid)
· 4K16 program memory
· 1928 data memory RAM
· Supports PFD for sound generation
· Real Time Clock (RTC); 32768Hz, with quick start-up control bit
· 8-bit prescaler for RTC


Pinout

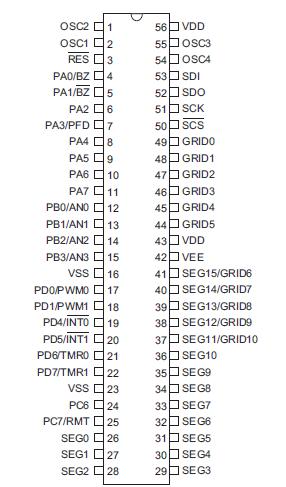

Connection Diagram


Specifications

Supply Voltage ................VSS0.3V to VSS+6.0V
Storage Temperature .................5 to 125
Input Voltage  ................VSS0.3V to VDD+0.3V
Operating Temperature ................40 to85
Note: These are stress ratings only. Stresses exceeding the range specified under Absolute Maximum Ratings may
cause substantial damage to the device. Functional operation of this device at other conditions beyond those
listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.




Description

The HT49CV5 is an 8-bit high performance single chip MCU. Its single cycle instruction and 2-stage pipeline architecture make it suitable for high speed applications. The device is built-in with a VFD driver suitable for use in products with a front panel such as DVD, VCD, Mini component Stereo, Cassette Deck, Tuner and CD Player, home appliance.
