Product Details

Description



Features:

` Operating voltage: 2.2V~5.2V
` 8 input lines
` 12 bidirectional I/O lines
` Two external interrupt input
` Two 8-bit programmable timer/event counter with PFD (programmable frequency divider) function
` LCD driver with 33 x 3 or 32 x 4 segments
` 4K x 15 program memory ROM
` 160 x 8 data memory RAM
` Real Time Clock (RTC)
` 8-bit prescaler for RTC
` Watchdog timer
` Buzzer output
` On-chip crystal and RC oscillator
` Halt function and wake-up feature reduce power consumption
` 6-level subroutine nesting
` Bit manipulation instruction
` 15-bit table read instruction
` Up to 1s instruction cycle with 4MHz system clock
` 63 powerful instructions
` All instructions in 1 or 2 machine cycles
` 80/100-pin QFP package


Pinout

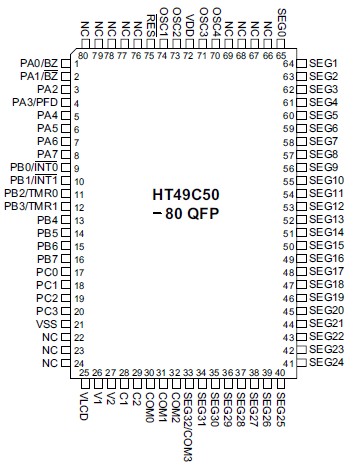

Connection Diagram


Specifications

Supply Voltage.......................VSS-0.3V to 5.5V
Input Voltage ................VSS-0.3V to VDD+0.3V
Storage Temperature................-50 to 125
Operating Temperature ..............-25 to 70

Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute MaximumRatings " may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.


Description

The HT49C50 is an 8-bit high performance single chip microcontroller. Its single cycle instruction and two-stage pipeline architecture make it suitable for high speed applications. The device is suited for use in multipleLCDlow power applications among which are calculators, clock timers, games, scales, leisure products, other hand held LCD products, and battery system in particular.
