HT48RA3

Features: ` Operating voltage: 2.2V~3.6V`23 bidirectional I/O lines (max.)`1 interrupt input shared with an I/O line`8-bit programmable timer/event counter with overflow interrupt and 8-stage prescaler (TMR0)`16-bit programmable timer/event counter and overflow interrupts (TMR1)`On-chip crystal an...

product image

HT48RA3 Picture
SeekIC No. : 004366850 Detail

HT48RA3: Features: ` Operating voltage: 2.2V~3.6V`23 bidirectional I/O lines (max.)`1 interrupt input shared with an I/O line`8-bit programmable timer/event counter with overflow interrupt and 8-stage presca...

floor Price/Ceiling Price

Part Number:
HT48RA3
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/15

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` Operating voltage: 2.2V~3.6V
`23 bidirectional I/O lines (max.)
`1 interrupt input shared with an I/O line
`8-bit programmable timer/event counter with overflow interrupt and 8-stage prescaler (TMR0)
`16-bit programmable timer/event counter and overflow interrupts (TMR1)
`On-chip crystal and RC oscillator
`Watchdog Timer
` 24Kx16 program memory EPROM (8Kx16 bitsx3 banks)
`224x8 data memory RAM
`PFD supported
`HALT function and wake-up feature reduce power consumption
`8-level subroutine nesting
`Up to 1s instruction cycle with 4MHz system clock at VDD=3V
`Bit manipulation instruction
`16-bit table read instruction
`63 powerful instructions
`All instructions in one or two machine cycles
`28-pin SKDIP/SOP package





Pinout

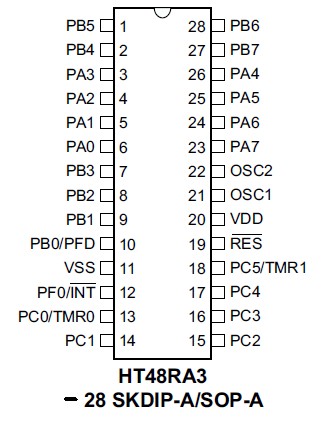

  Connection Diagram






Specifications

Supply Voltage .........................VSS-0.3V to VSS+5.5V
Input Voltage............................VSS-0.3V to VDD+0.3V
Storage Temperature .......................... -50 to 125
Operating Temperature...........................-40 to 85

Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.





Description

The HT48RA3/HT48CA3 are 8-bit high performance, RISC architecture microcontroller devices specifically designed for multiple I/O control product applications. The data ROM can be used to store remote control codes. The mask version HT48CA3 is fully pin and functionally compatible with the OTP version device.

The advantages of low power consumption, I/O flexibility, timer functions, oscillator options, watchdog timer, programmable frequency divider, HALT and wake-up functions, as well as low cost, enhance the versatility of these devices HT48RA3 to suit a wide range of application possibilities such as industrial control, consumer products, subsystem controllers, and particularly suitable for use in products such as universal remote controller (URC).
