Features: ` Operating voltage:
fSYS=4MHz: 3.3V~5.5V
fSYS=8MHz: 4.5V~5.5V
` 21 bidirectional I/O lines (max.)
`1 interrupt input shared with an I/O line
`8-bit programmable timer/event counter withoverflow interrupt and 8-stage prescaler
` On-chip external crystal, RC oscillator and internal RC oscillator
`32768Hz crystal oscillator for timing purposes only
`Watchdog Timer
`1024x14 program memory ROM
`64x8 data memory RAM
`Buzzer driving pair and PFD supported
`HALT function and wake-up feature reduce power consumption
`Up to 0.5s instruction cycle with 8MHz system clock at VDD=5V
`All instructions in one or two machine cycles
`14-bit table read instruction
`4-level subroutine nesting
`Bit manipulation instruction
`63 powerful instructions
`Low voltage reset function

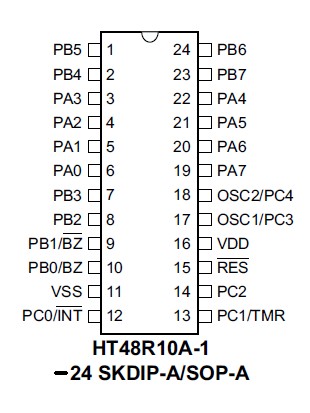

`24-pin SKDIP/SOP packagePinout
SpecificationsSupply Voltage ..............VSS-0.3V to VSS+5.5V
Input Voltage............... .VSS-0.3V to VDD+0.3V
Storage Temperature ...............-50 to 125
Operating Temperature ..............-40 to 85
Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.
DescriptionThe device HT48R10A-1 is an 8-bit high performance RISC-like microcontroller designed for multiple I/O product applications. The device is particularly suitable for use in products such as remote controllers, fan/light controllers, washing machine controllers, scales, toys and various subsystem controllers. A HALT feature is included to reduce power consumption.
The HT48R10A-1/HT48C10-1 are 8-bit high performance, RISC architecture microcontroller devices specifically designed for multiple I/O control product applications. The mask version HT48C10-1 is fully pin and functionally compatible with the OTP version device.
The advantages of low power consumption, I/O flexibility, timer functions, oscillator options, HALT and wake-up functions, watchdog timer, buzzer driver, as well as low cost, enhance the versatility of these devices HT48R10A-1 to suit a wide range of application possibilities such as industrial control, consumer products, subsystem controllers, etc.
HT48R10A-1 Data Sheet
