HT48R07A-1

Features: · Operating voltage: fSYS=4MHz: 2.2V~5.5V fSYS=8MHz: 3.3V~5.5V· 19 bidirectional I/O lines· An interrupt input shared with an I/O line· 8-bit programmable timer/event counter with overflow interrupt and 8-stage prescaler· On-chip crystal and RC oscillator· Watchdog Timer· 102414 program...

product image

HT48R07A-1 Picture
See larger image
SeekIC No. : 004366833 Detail

HT48R07A-1: Features: · Operating voltage: fSYS=4MHz: 2.2V~5.5V fSYS=8MHz: 3.3V~5.5V· 19 bidirectional I/O lines· An interrupt input shared with an I/O line· 8-bit programmable timer/event counter with overflow...

HT48R07A-1 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HT48R07A-1
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/7/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Operating voltage:
  fSYS=4MHz: 2.2V~5.5V
  fSYS=8MHz: 3.3V~5.5V
· 19 bidirectional I/O lines
· An interrupt input shared with an I/O line
· 8-bit programmable timer/event counter with overflow
  interrupt and 8-stage prescaler
· On-chip crystal and RC oscillator
· Watchdog Timer
· 102414 program memory ROM
· 648 Data memory RAM
· Buzzer driving pair and PFD supported
· HALT function and wake-up feature reduce power consumption
· Up to 0.5s instruction cycle with 8MHz system clock at VDD=5V
· All instructions in one or two machine cycles
· 14-bit table read instruction
· Two-level subroutine nesting
· Bit manipulation instruction
· 63 powerful instructions
· Low voltage reset function
· 24-pin SKDIP/SOP/SSOP package


Pinout

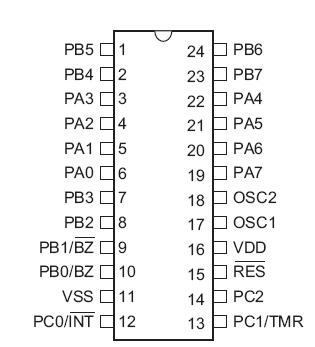

Connection Diagram


Specifications

Supply Voltage ...........................VSS-0.3V to VSS+6.0V
Storage Temperature ...........................-50°C to 125°C
Input Voltage..............................VSS-0.3V to VDD+0.3V
Operating Temperature...........................-40°C to 85°C
Note: These are stress ratings only. Stresses exceeding the range specified under Absolute Maximum Ratings may
  cause substantial damage to the device. Functional operation of this device at other conditions beyond those
  listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.


Description

The HT48R07A-1 is an 8-bit high performance, RISC architecture microcontroller devices specifically designed for cost-effective multiple I/O control product applications. The advantages of low power consumption, I/O flexibility, timer functions, oscillator options, HALT and wake-up functions, Watchdog Timer, buzzer driver, as well as low cost, enhance the versatility of these devices to suit a wide range of application possibilities such as industrial control, consumer products, subsystem controllers, etc.
