HT48CXX

Features: · Operating voltage: 2.4V~5.2V· Bidirectional I/O lines with a selection of 18, 22, 32 and 56 lines· One interrupt input· Programmable timer/event counters with overflow interrupts and a selection of one 8-bit counter, one 8-bit and one 16-bit counters, or two 16-bit counters· On-chip cr...

product image

HT48CXX Picture
See larger image
SeekIC No. : 004366806 Detail

HT48CXX: Features: · Operating voltage: 2.4V~5.2V· Bidirectional I/O lines with a selection of 18, 22, 32 and 56 lines· One interrupt input· Programmable timer/event counters with overflow interrupts and a s...

HT48CXX Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
HT48CXX
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Operating voltage: 2.4V~5.2V
· Bidirectional I/O lines with a selection of 18, 22, 32 and 56 lines
· One interrupt input
· Programmable timer/event counters with overflow interrupts and a selection of one 8-bit counter, one 8-bit and one 16-bit counters, or two 16-bit counters
· On-chip crystal and RC oscillator
· Watchdog timer
· Program ROM with size selection of 1Kx14, 2Kx14, 4Kx15 and 8Kx16 bits
· Data RAM with size selection of 64x8, 96x8, 160x8 and 224x8 bits
· Halt function and wake-up feature to reduce power consumption
· 63 powerful instructions
· Up to 0.5ms instruction cycle with 8MHz system clock at VDD=5V
· All instructions in 1 or 2 machine cycles
· 14-bit/15-bit/16-bit table read instructions
· 2-level/4-level/8-level subroutine nesting
· Bit manipulation instructions


Pinout

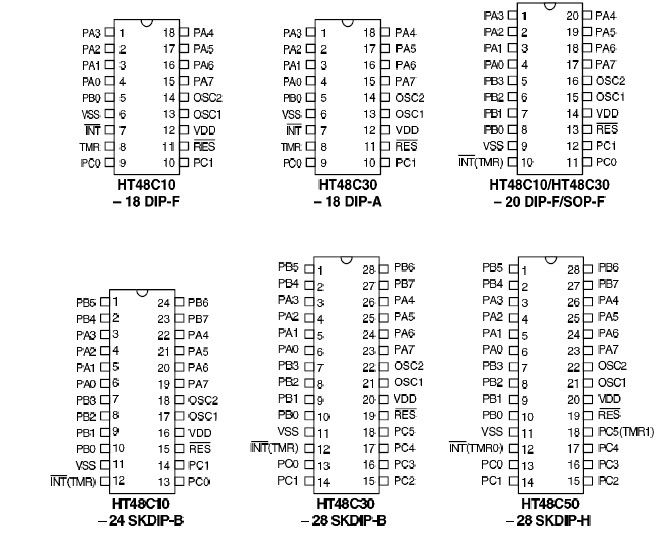

Connection Diagram


Specifications

Supply Voltage .......................VDD0.3V to 5.5V
Input Voltage ................VSS0.3V to VDD+0.3V
Storage Temperature............ 50°C to 125°C
Operating Temperature ...........25°C to 70°C

Note: These are stress ratings only. Stresses exceeding the range specified under "Absolute Maximum Ratings" may cause substantial damage to the device. Functional operation of this device at other conditions beyond those listed in the specification is not implied and prolonged exposure to extreme conditions may affect device reliability.


Description

The HT48CXX series HT48C10/48C30/48C50/48C70 are 8-bit high performance RISC-like microcontrollers, specifically designed for multiple I/O product applications. These devices are suitable for use in products such as remote controllers, fan/light controllers, washing machine controllers, scales, toys, and various subsystem controllers. They all contain a halt feature to reduce power consumption. The major differences between HT48CXX series are attributed to variations in sizes of the ROM and RAM, as well as bit number, counter number, I/O line number, and different level subroutine nesting. Roughly speaking, the HT48C10 is a microcontroller with most economic features and the HT48C70 is one with the most features of the four microcontrollers.
