Product Details

Description



Features:

` Operating voltage:
    fSYS=4MHz: 2.2V~5.5V
    fSYS=8MHz: 3.3V~5.5V
` Low voltage reset function
` 56 bidirectional I/O lines (max.)
` Two interrupt input
` 16-bit*2 programmable timer/event counter and overflow interrupts with PFD outputs
` 8-bit*1 programmable timer/event counter
` On-chip RC oscillator, external crystal and RC oscillator
` 32768Hz crystal oscillator for timing purposes only
` Watchdog Timer
` 16K*16 program memory ROM
` 576*8 data memory RAM
` Universal Asynchronous Receiver/Transmitter (UART)
` HALT function and wake-up feature reduce power consumption
` 16-level subroutine nesting
` Up to 0.5 s instruction cycle with 8MHz system clock at VDD=5V
` Bit manipulation instruction
` 16-bit table read instruction
` 63 powerful instructions
` All instructions in one or two machine cycles
` 48-pin SSOP, 64-pin QFP package

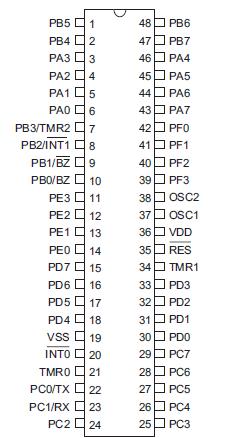

Pinout

Connection Diagram


Description

The HT48RU80/HT48CU80 are 8-bit high performance,RISC architecture microcontroller devices specifically designed for multiple I/O control product applications.The mask version HT48CU80 is fully pin and functionally compatible with the OTP version HT48RU80 device.

The advantages of low power consumption, I/O flexibility,timer functions, oscillator options, HALT and wake-up functions, watchdog timer, buzzer driver, as well as low cost, enhance the versatility of these devices HT48CU80 to suit a wide range of application possibilities such as industrial control, consumer products, subsystem controllers,etc.

The HT48CU80 is under development and will be available soon.
